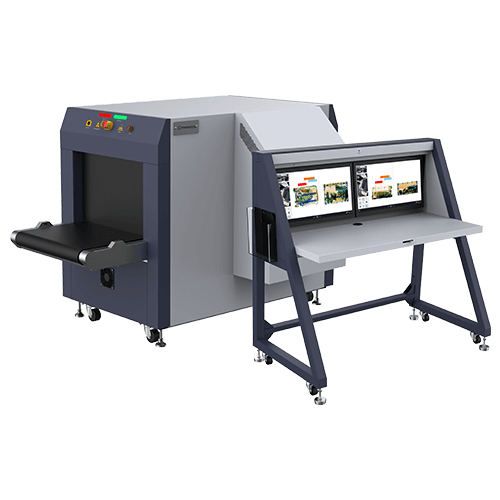

Introducing the Ai-Scan-DV X-ray security inspection system, a cutting-edge solution designed to revolutionize threat detection and baggage screening. This new generation system integrates intelligent detection, high-resolution imaging, and multi-functional capabilities to provide superior security in diverse environments. Ideal for customs, office buildings, large events, prisons, hospitals, and more, its versatile tunnel accommodates everything from suitcases to handbags. Benefit from advanced material classification with multi-color discrimination and intelligent recognition that automatically detects over 35 major types of target objects. With crystal-clear HD X-ray images, variable conveyor speeds for optimized flow, and robust remote management, the Ai-Scan-DV offers unmatched efficiency and peace of mind.
ai based
Energy Saving
One key turn off
High resolution color display
Sound and alarm
Baggage counter
Compact Design
Scan Palletized Loads
| Specification | Details |
|---|---|
| Tunnel Dimensions | 620 mm (W) × 420 mm (H) |
| System Dimensions | 2311 mm (L) × 1172 mm (W) × 1260 mm (H) |
| Conveyor Height | 600 mm |
| Conveyor Speed | 0.2 m/s, 0.3 m/s, 0.4m/s adjustable |
| Max. Conveyor Capacity | 165 kg (Even Distributed) |
| Wire Resolution | 38/40 AWG |
| Penetration (Steel) | 34/35 mm |
| Number of Generators | 2 |
| Anode Voltage / Current | 160KV |
| Cooling / Working cycle | Oil-cooling / Continuous |
| External dose rate | < 0.5 µSv/h (50mm Distance to the Housing) |
| Film Safe | Guaranteed up to ISO1600 |
| Prohibited Goods Detection | 35 Major Types, over 64 categories |
| Others | Shield Alarms, etc. |
| Cameras | 3 Camera, Resolution: 1920x1080 |
| Sensor Type | 1/2.8" Progressive Scan CMOS |
| Video Compression Standard | H.265 / H.264 / MJPEG |
