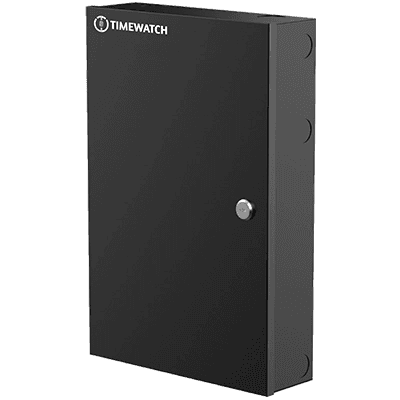

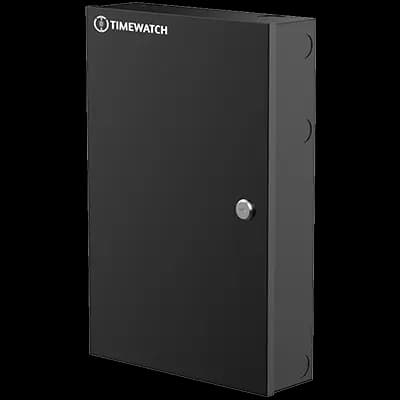

The TimeWatch TF-4DCW is a versatile network-enabled controller designed for elevator and multi-door secure access, ideal for commercial towers, offices, and residential complexes. Capable of managing up to 4 doors or elevator relays, TF-4DCW seamlessly integrates with RFID, fingerprint, and facial recognition terminals for flexible credential-based access.
Fingerprint
Card
Password
| Specification | Details |
|---|---|
| User Capacity | 1,00,000 |
| Fingerprint Capacity | 10,000 |
| Card Capacity | 1,00,000 |
| Communication | TCP/IP & P2P Registration |
| Web Configuration | Yes |
| Network Port | 5-Channel |
| Wiegand | 8-Channel Input |
| Power Supply | Power in: 12V DC or Power over Ethernet IEEE 802.3at Type 2 Class 4 |
| Product Dimensions | 186.4 × 185.8 × 58.3mm |
