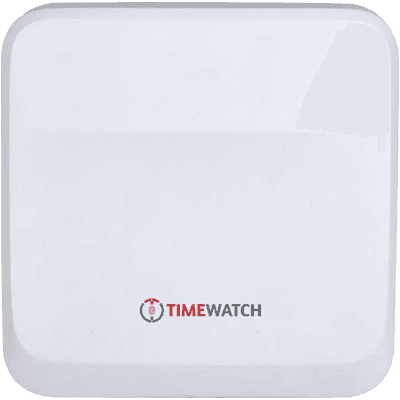

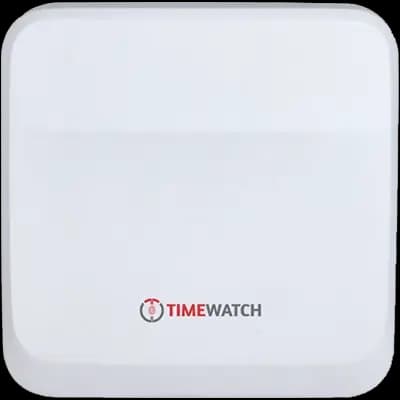

The TimeWatch TF-1DCW is a compact standalone controller designed for secure access management of one door or elevator relay. It supports multiple credentials (RFID, fingerprint, face, password) and features TCP/IP plus RS485 networking for central monitoring and remote configuration. With real-time event logs, anti-passback, and TimeWatch software compatibility, TF-1DCW provides robust, auditable security for offices, clinics, private rooms, and residential units.
Card
Fingerprint
Bluetooth
| Specification | Details |
|---|---|
| User Capacity | 1,000 (main control mode), 10,000 (sub control mode) |
| Fingerprint Capacity | 3,000 |
| Card | Capacity 5,000 (main control mode), 50,000 (sub control mode) |
| Bluetooth Card Capacity | 300,000 |
| Communication | TCP/IP & PoE Standard |
| Web Configuration | Yes |
| Protection | IK06 |
| Power Supply | AC to DC, AC 100–240V 1.4A; DC 12V 6A |
| Product Dimensions | 397.6 × 262.6 × 82.8 mm (L × W × H) |
