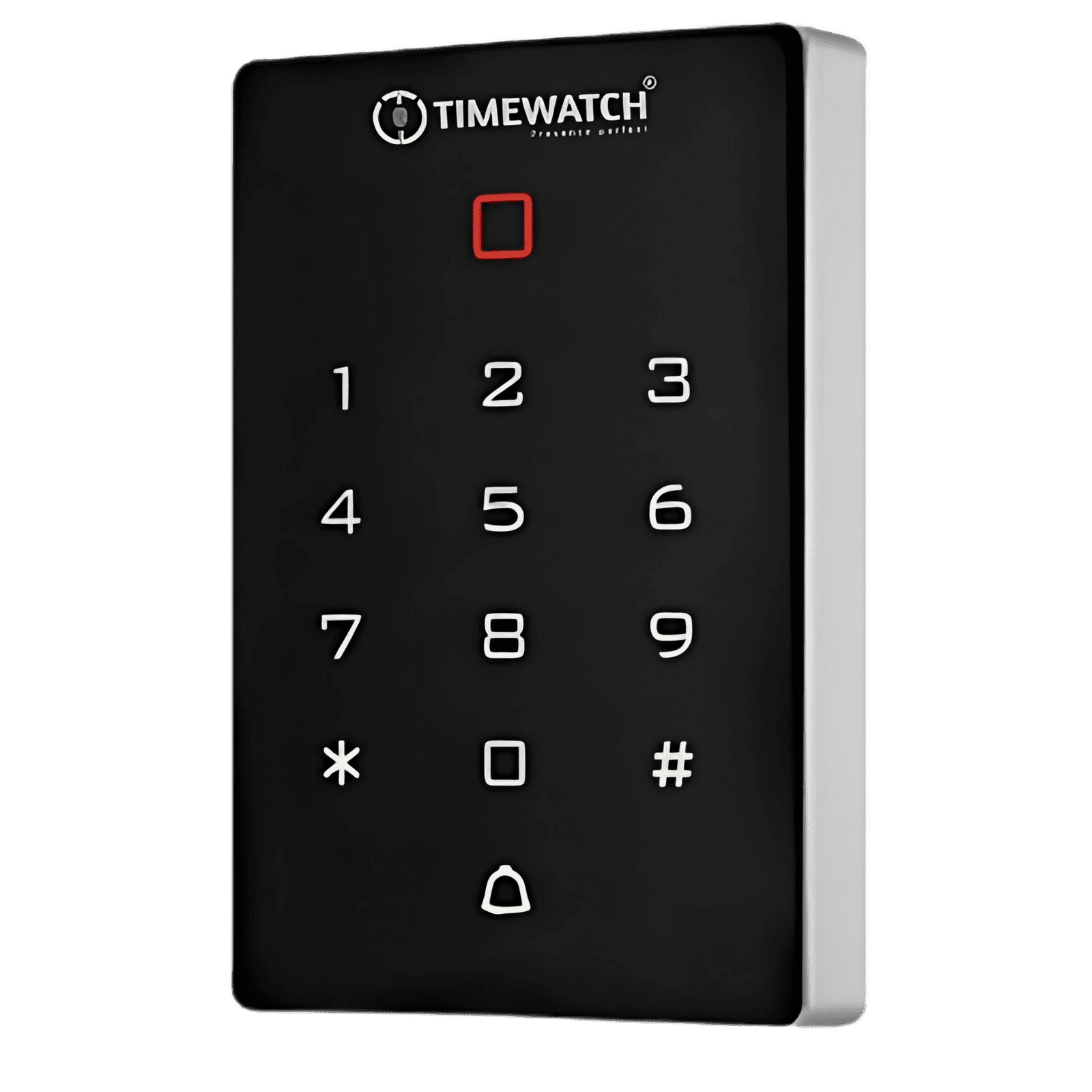

TimeWatch TW-CR12 / CR12W: Standalone Card & PIN Access Controller: The TW-CR12/CR12W is an ultra-low power, IP65-rated, standalone controller and proximity card reader supporting EM & MF cards. It features Wiegand WG26/34 input/output, backlit keypad for night operation, mobile app connectivity, and a robust, anti-interference microprocessor. Suitable for residential and commercial access, it can store 2,000 users and offers fast card/PIN verification under 0.1 seconds. The doorbell interface, changeable codes, lost card deletion, and easy installation make it ideal for gates, doors, and secured entries.
Password
Card
Wi-Fi
High speed processor
Mobile app connectivity
IP65 Protection
| Specification | Details |
|---|---|
| Power Supply | 12V DC |
| Power Consumption | <= 2W |
| Processor | 8-bit |
| Reading Frequency | 125 KHz/ 13.56 MHz |
| Reading Range | <= 50mm |
| Radio Frequency Standard | ISO 11784/11785/ISO14443-A |
| Audio | Alert Beeper |
| Keypad | No Keypad |
| LED Indicator | Power Indicator, Status Indicator |
| Working Temperature | -20°C to +65°C (-4°F to 149°F) |
| Working Humidity | 10% to 90% (Non Condensing) |
| Dimensions | 115.9 x 43.3 x 17mm |
| Protection Level | IP65-Protection.png |
| Installing Method | Wall Mound with Screws; Do Not Support Gang Box |
