TW3300

TW3300

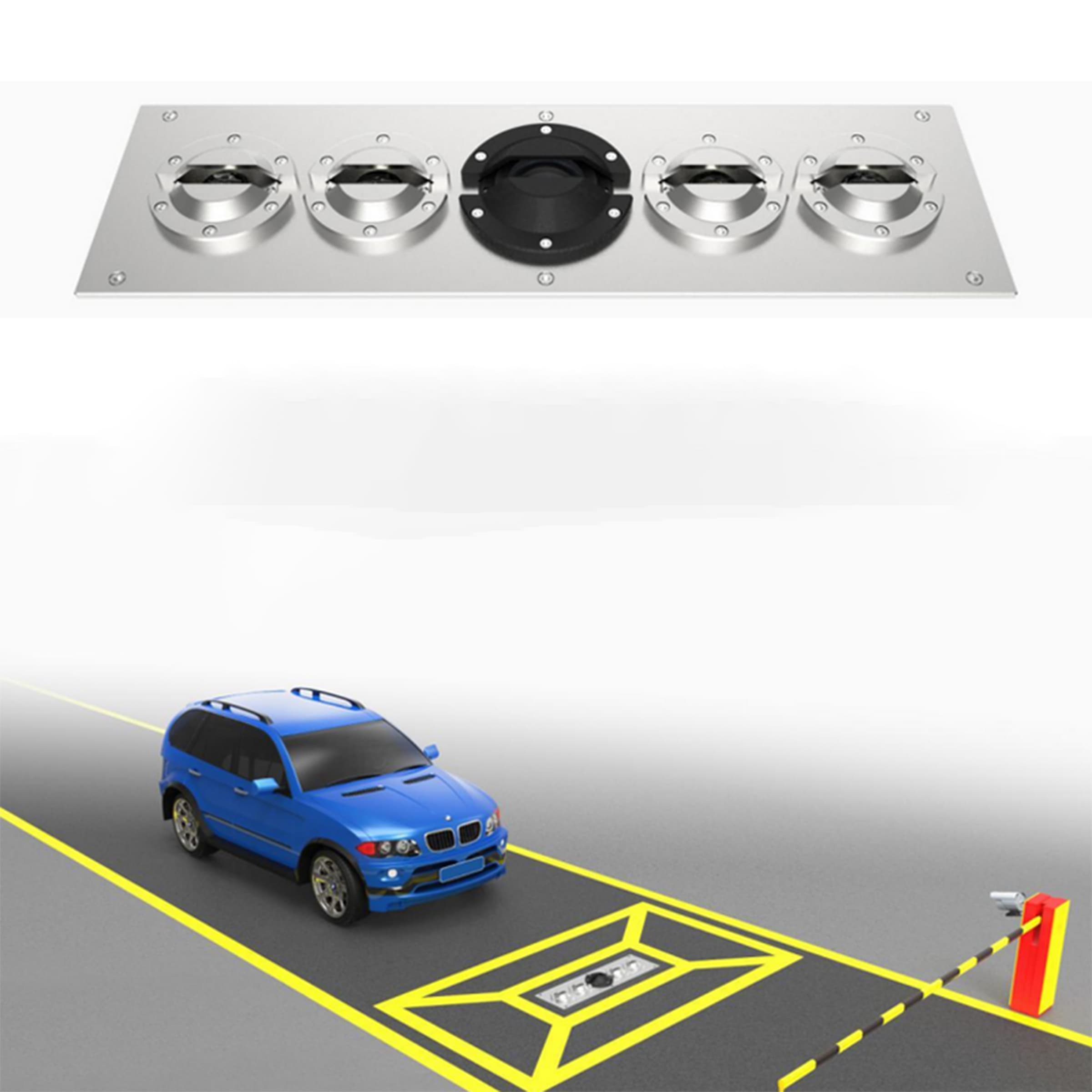

UVSS, which stands for Under Vehicle Surveillance System, is an advanced security technology designed to inspect the undercarriage of vehicles for potential threats, contraband, or other security risks. Typically, UVSS systems consist of a series of high-resolution cameras and specialized lighting modules strategically installed at fixed positions on the ground, usually at entry or exit points of secured facilities such as airports, military bases, government buildings, and high-security installations. By providing a clear view of the underside of vehicles, UVSS enhances overall security and enables quick detection of potential hazards before vehicles are allowed to enter sensitive areas.

Download

Product Specifications

SpecificationDetails
Maximum Scanning Rate18kHz
View Angle170°
Lightning320W
Vehicle Speed1-60 km/hr (<30 km/hr)
Scanner Data Line10m (Customizable)
Lightning Component4 single sealed LED surface light sources, life span 50,000 hours
Load Bearing Weight50T
Waterproof GradeIP68
Weight of Device 180kg
Size of Device1200 x 350 x 210mm
Image Resolution12000 x 6144
Operating Temperature-25°C ~ +60°C
Storage Temperature-40°C ~ +75°C
Scannig Resolution≥ 2048 pixels CCD / ≥ 4096 pixels CCD
