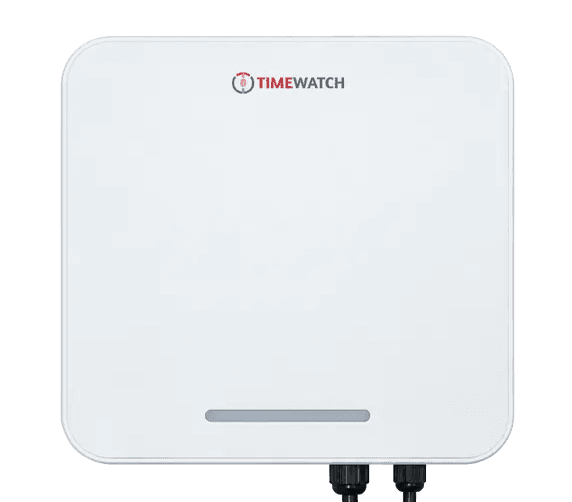

The TimeWatch TW-UR710 Long-Range UHF RFID Reader, powered by the Impinj E710 chipset, is an advanced RFID solution for vehicle identification, smart parking, tolling, logistics, and access control applications. Featuring a built-in circularly polarized antenna, it offers a reading range of up to 30 metres and an inventory speed of approximately 950 tags per second. Supporting the EPC Class 1 Gen 2 (ISO 18000-6C) protocol, it provides efficient multi-tag identification with anti-collision functionality. With RS-232, RS-485, Wiegand, and TCP/IP connectivity, the TW-UR710 integrates with compatible access control and vehicle management systems for reliable, long-range RFID applications.
| Specification | Details |
|---|---|
| Frequency | 865~868MHz/902~928MHz frequency band |
| Protocol | EPC C1 Gen 2 (18000-6C) |
| Antenna | Circular polarization |
| Output power | Up to 33 dBm |
| Receiver Sensitivity | -87 dBm |
| Reading range | Up to 30 m |
| Inventory speed | Approx 950 tags/second |
| Interfaces | RS232, RS485, Wiegand, & TCP/IP (Wi-Fi, BT, USB, 4G - Optional) |
| Power supply | 26V DC |
| Current | Standby 80 mA, 1180 mA at 33 dBm |
| Operating temperature | -20°C to +60°C |
| Storage temperature | -20°C to +70°C |
| Dimensions | 278.5 × 257 × 52 mm |
