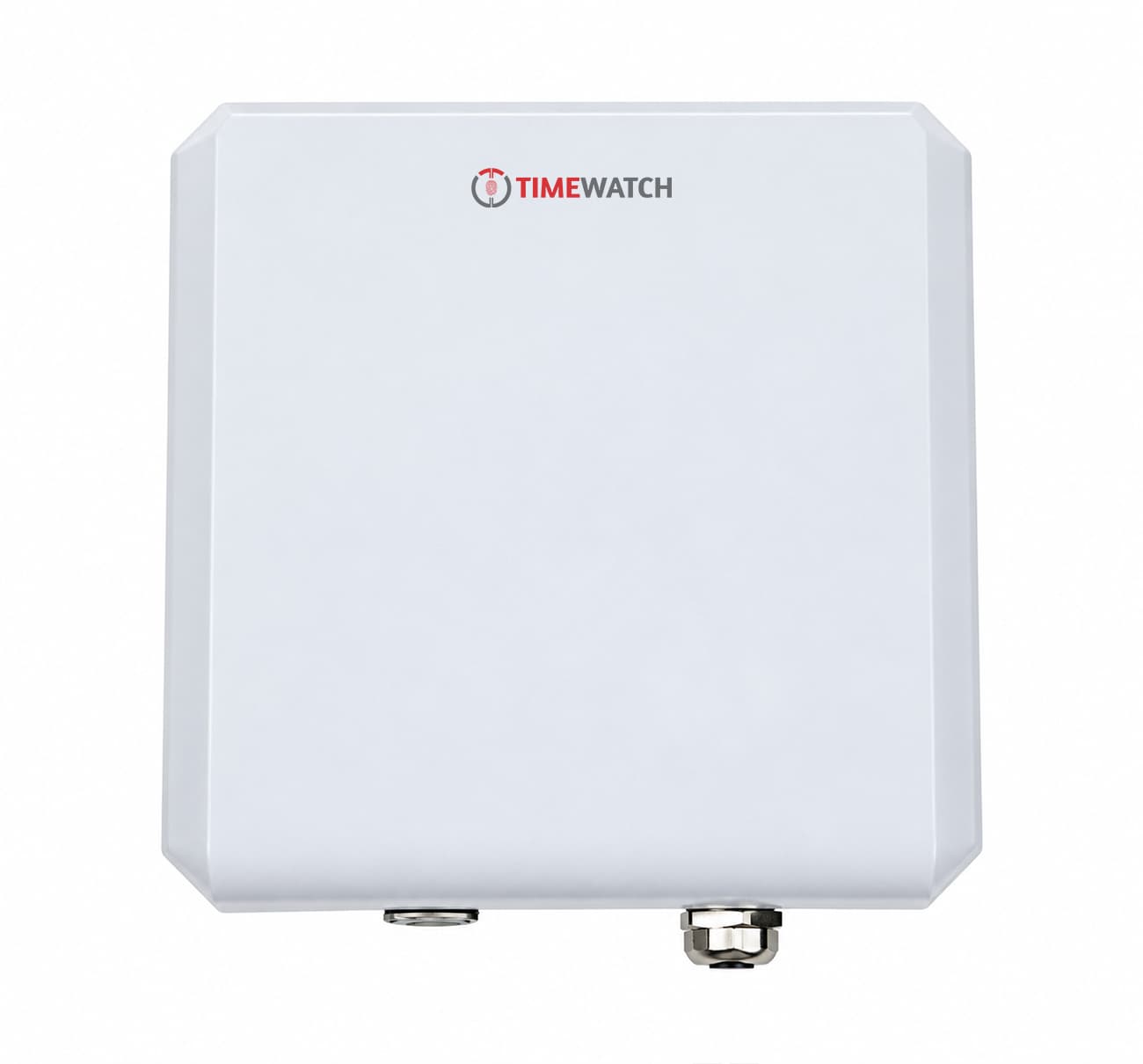

TW-UR6000/6000T is an all in one UHF RFID reader with a built in circular polarized antenna. It reads tags from up to 5 metres away and captures more than 400 tags per second. It connects over RS-232 & Wiegand (TCP/IP Optional), so it fits vehicle access, parking, asset tracking and gate automation. The housing is waterproof ABS and aluminium alloy, so the reader works reliably outdoors in all weather.
| Specification | Details |
|---|---|
| Frequency | 865 to 868 MHz (other bands through software) |
| Protocol | EPC global UHF Class 1 Gen 2 (18000-6C) |
| Antenna | Circular polarization |
| Output power | 0 to 30 dBm, adjustable in 1 dBm steps (±1 dB accuracy) |
| Receive sensitivity | < -75 dBm |
| Read / write distance | 0 to 5 m / 0 to 1 m (depending on label on environment) |
| Inventory speed | > 400 tags/second |
| Interfaces | RS-232 & Wiegand (TCP/IP Optional) |
| Baud rate | 115200 bps (default) |
| GPIO | 2 output |
| Power supply | DC 12 to 24V |
| Current | Standby ≤ 100 mA, Operating ≤ 800 mA @ 12V |
| Operating temperature | -20°C to +65°C |
| Storage temperature | -40°C to +85°C |
