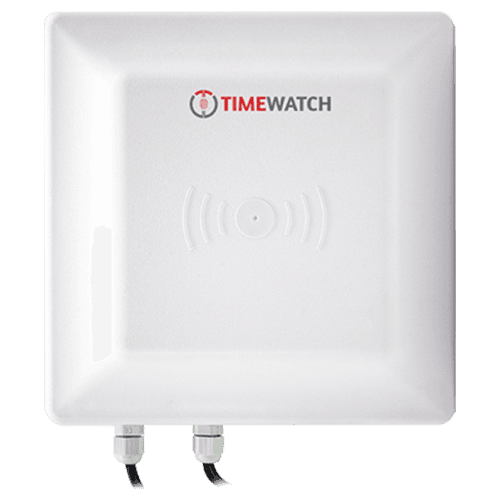

A UHF (Ultra-High Frequency) reader is a specialized device designed to read and interact with UHF RFID (Radio Frequency Identification) tags. By utilizing electromagnetic waves in the ultra-high frequency range, these readers facilitate communication with RFID tags, which are widely employed for tracking and identification purposes across numerous industries, including logistics, retail, and healthcare. UHF readers provide advantages such as longer read ranges and faster data transfer rates compared to lower frequency counterparts, making them ideal for applications requiring efficient inventory management and access control. Their versatility and effectiveness contribute significantly to streamlining operations and enhancing visibility in various sectors.
Built in Buzzer
national and american standard frequency
Dual polarization reading
Multi Range Availability
| Specification | Details |
|---|---|
| Working Frequency | Indian standard (865~867MHz), American standard (902~928MHz), European Standard (865~868MHz) or customize other frequency |
| Support Protocol | ISO18000-6B, ISO18000-6C(EPC GEN2) |
| Frequency Hopping | FHSS or fixed frequency set by software |
| Communication | Wiegand & RS-232, RS-485 (Optional), [TCP/IP (TW-UR5T)] |
| Working Way | Automatically reading card at regular time, can set reading card way |
| Frequency Power | Up to 26dBm, adjustable by software |
| Reading Range | Up to 5 meter |
| Reading Speed | Dual polarization reading |
| Tag Type | Passive UHF RFID Tag (Gen2 UHF) |
| Antenna | Built-in linear Polarization antenna. |
| Multi Tag Reading | Support Anti Collision for multiple tag |
| Integration | Inbuilt relay for Boom Barrier integration |
| Working Voltage | 9V to 12V DC |
| Working Status Indication | Buzzer, LED |
| Power | 1W |
| Working Temperature | -20 ~80°C |
| Storage Temperature | -40 ~125°C |
| Working Humidity | 20%~95%(No condensing) |
| Protection Rating | IP68 (Outdoor Use) |
| Mounting | Pole Mount / Wall Mount |
| Housing Material | Rugged, Weatherproof enclosure |
