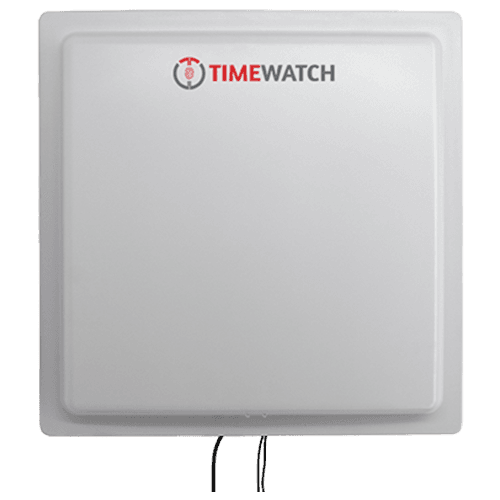

The TW-UR12/12T is an outdoor, IP68-rated long-range UHF card reader specifically designed for UHF cards and tags (Gen2). With a read range of up to 12 meters, it provides convenient and efficient RFID authentication for a wide range of applications, including door access control, vehicle gate access, and other scenarios where users do not need to present their RFID credentials at close proximity to the reader. The TW-UR12/12T also features a built-in Wiegand output port, enabling seamless connectivity with access control panels and integrated security systems.
Built in Buzzer
national and american standard frequency
Dual polarization reading
Multi Range Availability
| Specification | Details |
|---|---|
| Working Frequency | Indian standard (865~867MHz), American standard (902~928MHz), European Standard (865~868MHz) or customize other frequency |
| Support Protocol | ISO18000-6B, ISO18000-6C(EPC GEN2) |
| Frequency Hopping | FHSS or fixed frequency set by software |
| Communication | Wiegand & RS-232, RS-485 (Optional), [TCP/IP (TW-UR5T] |
| Working Way | Automatically reading card at regular time, can set reading card way |
| Frequency Power | Up to 26dBm, adjustable by software |
| Reading Range | Up to 5 meter |
| Reading Speed | Dual polarization reading |
| Tag Type | Passive UHF RFID Tag (Gen2 UHF) |
| Antenna | Built-in linear Polarization antenna. |
| Multi Tag Reading | Support Anti Collision for multiple tag |
| Integration | Inbuilt relay for Boom Barrier integration |
| Working Voltage | 9V to 12V DC |
| Working Status Indication | Buzzer, LED |
| Power | 1W |
| Working Temperature | -20 ~80°C |
| Storage Temperature | -40 ~125°C |
| Working Humidity | 20%~95%(No condensing) |
| Protection Rating | IP68 (Outdoor Use) |
| Mounting | Pole Mount / Wall Mount |
| Housing Material | Rugged, Weatherproof enclosure |
