TW-DCLD-7000

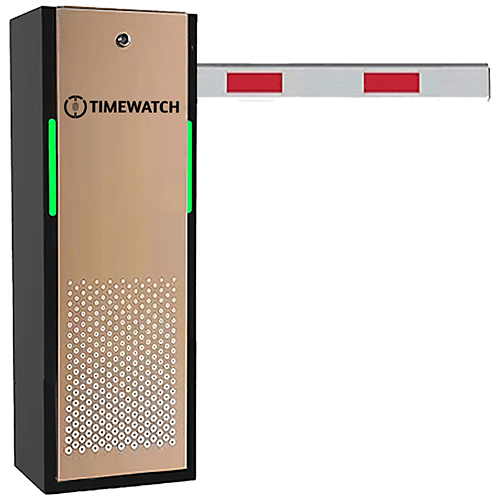

TimeWatch TW-DCLD-7000 : Heavy-Duty Automatic Boom Barrier The TimeWatch TW-DCLD-7000 is a heavy-duty automatic boom barrier designed for secure vehicle access at parking lots, gated communities, campus entrances, and industrial sites. Its powerful motor mechanism ensures rapid opening/closing cycles and supports booms up to 6 meters. TW-DCLD-7000 integrates easily with RFID, ANPR, push buttons, remotes, and manual override systems for versatile access management. With IP55 weatherproof housing, advanced safety sensors, anti-crash function, and LED lighting options, it’s built for reliable all-weather operation and continuous use in high-traffic environments or drive, adjustable boom length, and fast opening/closing cycles, TW-DCLD-7000 delivers reliable security and smooth traffic management.
- Brief:
- 1. High-performance motor mechanism for swift and reliable boom operation.
- 2. Customizable boom length (up to 6 meters) for cars, vans, and light trucks.
- 3. Integrated safety sensors prevent accidental lowering on vehicles and pedestrians.
- 4. IP55 weatherproof enclosure for outdoor durability and longevity.
- 5. Supports RFID, ANPR camera, push button, remote control, and manual override for versatile access management.
- 6. Seamless integration with security panels, parking software, ticketing, and payment systems.
- 7. Automatic obstacle detection and anti-crash function for enhanced safety.
- 8. LED boom lighting for nighttime visibility (model-dependent).
- 9. Designed for 24/7 operation in busy commercial, residential, and industrial environments.
Features
Rebound function in resistance
1.5 - 6s Quick Lifting Speed
Long remote control range <30m
Negligible Maintenance
24V DC Brushless motor
Download
Product Specifications
| Specification | Details |
|---|---|
| Appearance Dimension | 320 x 250 x 940 mm |
| Boom Arm | 3m standard, customizable up to 6m. |
| Power Supply | 220V ± 10% 50~60Hz |
| Motor | 24V 150W Brushless DC motor |
| Remote Control Distance | < 30m |
| Waterproof Grade | IP55 |
| Working Temperature | -30°C ~ +70°C |
| Box Thickness | Full-thickness of 1.5mm |
