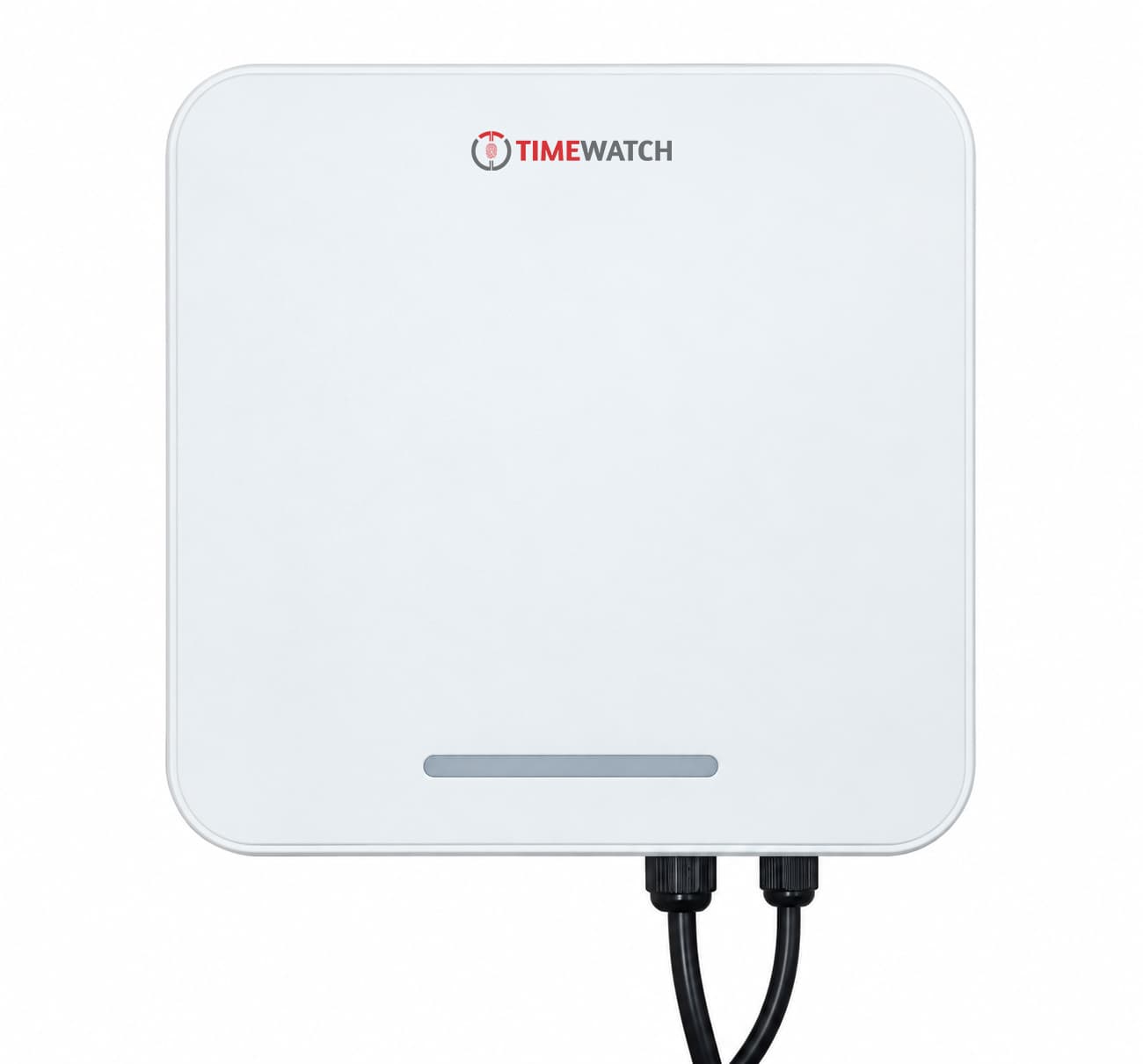

TW-UR9000 is a long range, all in one UHF RFID reader with a built in circular polarized antenna. It reads tags from up to 20 metres away and captures more than 400 tags per second, so it suits vehicle identification at gates and parking entries. It connects over RS-232 & Wiegand (TCP/IP Optional), which lets it plug straight into access controllers and existing Wiegand systems. The waterproof housing is built for all weather outdoor use.
| Specification | Details |
|---|---|
| Frequency | 865 to 868 MHz (other bands through software) |
| Protocol | EPC global UHF Class 1 Gen 2 (18000-6C) |
| Antenna | Circular polarization |
| Output power | 0 to 33 dBm, adjustable in 1 dBm steps (±1 dB accuracy) |
| Receive sensitivity | < -75 dBm |
| Read / write distance | 0 to 20 m / 0 to 2.5 m (depending on label on environment) |
| Inventory speed | > 400 tags/second |
| Interfaces | RS-232 & Wiegand (TCP/IP Optional) |
| Baud rate | 115200 bps (default) |
| GPIO | 2 output |
| Power supply | DC 12 to 24V |
| Current | Standby ≤ 80 mA, maximum ≤ 800 mA @ 12 V |
| Operating temperature | -20°C to +65°C |
| Storage temperature | -40 °C to +85 °C |
