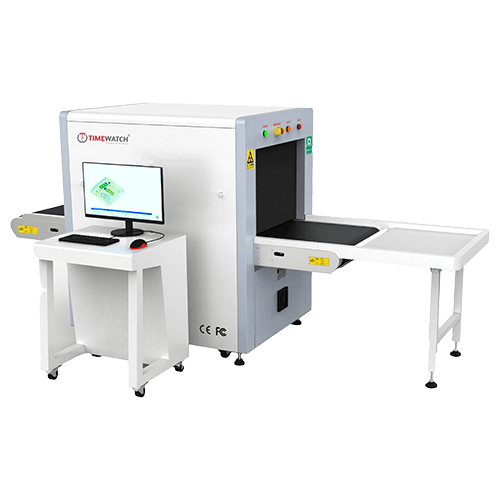

TimeWatch TWAT6550B: Mid-Size X-Ray Baggage Scanner The TimeWatch TWAT6550B is a reliable, mid-range X-ray baggage scanner, ideal for detecting weapons, explosives, and contraband at security checkpoints in airports, metro stations, government buildings, and hotels. Its spacious tunnel (650 x 500 mm) accommodates suitcases, parcels, and small cargo, ensuring thorough screening without delays. High-resolution single-view imaging, automatic system diagnostics, and fast conveyor speed boost screening efficiency for busy environments. User-friendly touchscreen controls, network integration, and predictive maintenance alerts enhance hassle-free operation and centralized security.
Energy Saving
One key turn off
High resolution color display
Sound and alarm
Baggage counter
Compact Design
Scan Palletized Loads
| Specification | Details |
|---|---|
| Tunnel Size | 659.4 x 503.85 mm (± 20mm) |
| X-ray Tube Anode Voltage | 160 Kv |
| X-ray Tube Cooling | Sealed oil bath with forced air |
| Penetration(steel) | Typical: 40 AWG (0.08mm); Standard: 38 AWG (0.1mm)* |
| Wire Resolution | 30-35 mm |
| Leakage Dose-rate | < 0.9 μSv/h (μGy/h) |
| Noise Level | < 65 dB |
| Conveyor Speed | 0.2 m/s |
| Maximum Belt Load | 160kg |
| Power Supply | AC 220V-240V, 50/60Hz; AC 100V-130V, 50/60Hz |
| Typical Power Consumption | 450 W |
| Operating Temperature | 0°C ~ +45°C (32°F to 113°F) |
| Operating Humidity | 0% ~ 95% (RH), non-condensing |
| Dimension | 2194 x 902 x 1362.5 mm |
