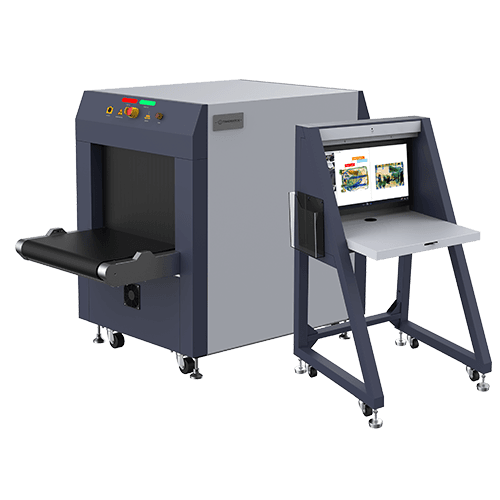

The TW6040B (AI) X-ray security inspection system is a new generation, multi-functional solution engineered for superior security screening across diverse environments. This advanced system features intelligent detection and a Hi-Resolution display, making it ideal for customs, office buildings, large events, schools, hospitals, and more. It expertly classifies materials by assigning different colors for enhanced threat identification and leverages intelligent recognition to automatically detect over 35 major types of target objects. With its new generation image processing, the system delivers clear, high-resolution X-ray images. Further enhancing operational efficiency are its variable conveyor speed and comprehensive remote management capabilities, allowing for real-time monitoring and reporting to ensure optimal security for various baggage types.
ai based
Energy Saving
One key turn off
High resolution color display
Sound and alarm
Baggage counter
Compact Design
Scan Palletized Loads
| Specification | Details |
|---|---|
| Tunnel Dimensions | 620 mm (W) × 420 mm (H) |
| System Dimensions | 2011 mm (L) × 887 mm (W) × 1260 mm (H) |
| Conveyor Height | 600 mm |
| Conveyor Speed | 0.2 m/s, 0.3 m/s, 0.4m/s adjustable |
| Max. Conveyor Capacity | 165 kg (Even Distributed) |
| Wire Resolution | 38/40 AWG |
| Penetration (Steel) | 34/36 mm |
| Number of Generators | 1 |
| Anode Voltage / Current | 160KV |
| Cooling / Working cycle | Oil-cooling / Continuous |
| External dose rate | < 0.5 µSv/h (50mm Distance to the Housing) |
| Film Safe | Guaranteed up to ISO1600 |
| Prohibited Goods Detection | 35 Major Types, over 64 categories |
| Others | Shield Alarms, etc. |
| Cameras | 3 Camera, Resolution: 1920x1080 |
| Sensor Type | 1/2.8" Progressive Scan CMOS |
| Video Compression Standard | H.265 / H.264 / MJPEG |
