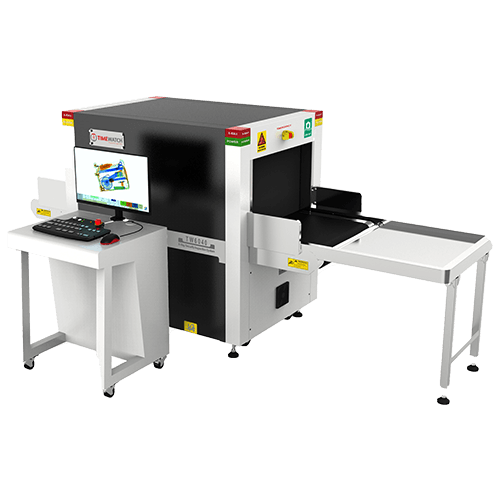

TW6040B X-ray Baggage scanner is ideal for screening everything from mid-size packages to oddly shaped items and palletized loads. It is strategically designed for mid-size baggage and parcels to thwart the cleverest attempts at hiding weapons, drugs, stolen goods, and other contraband. Dual-energy imaging provides automatic color coding of materials.
One key turn off
High resolution color display
Sound and alarm
Baggage counter
Compact Design
Scan Palletized Loads
| Specification | Details |
|---|---|
| Tunnel Dimensions | 600mm*400mm (±20mm) |
| System Dimensions | 2648 mm (L) × 844 mm (W) × 1234 mm (H) |
| Conveyor Height | 653 mm |
| Conveyor Speed | 0.2 m/s (Bidirectional) |
| Max. Conveyor Capacity | 170 kg |
| Through Put | 250 bags/hour |
| Wire Resolution | SWG42 |
| Penetration (Steel) | 35mm |
| Spatial Resolution | Vertical:1.0mm, Horizontal:1.0mm |
| Resolution of Organic Matter | 1-120mm |
| Gray Scale and Mixture Resolution | 1-40mm |
| Resolution of Inorganic Objects | 1-60mm |
| X-Ray Dosage Each Inspection | ≤4.5 µSv (uGy) |
| Radiation level | 0.1 mR/h (at 5cm) |
| Sensor | ≥1000 diodes, L-shaped detector |
| Duty Cycle | 100% |
| Number of Generators | 1 |
| Anode Voltage / Current | 160KV |
| Cooling / Working cycle | Oil-cooling / Continuous |
| Film Safe | Guarantee ASA/ISO1600Film |
| Operating System | Linux |
| Monitor | 19" LCD screen |
| Resolution | 1920*1080 pixels |
| HDD | 500 GB |
| Mouse | Optical |
| Ports | 6 USB Ports |
| CD-R/RW Drive | DVD Writer |
| Network facility | 10/100/1000 Mbps |
| Power Consumption | 0.5 KW |
| Power Supply | 230V AC, 50Hz(±3Hz) |
| Noise level | < 60 dB |
| Operating Temperature / Humidity | 0°C to 45°C / Up to 90% (non-condensing) |
| Storage Temperature / Humidity | -10°C to 60°C / Up to 90% (non-condensing) |
