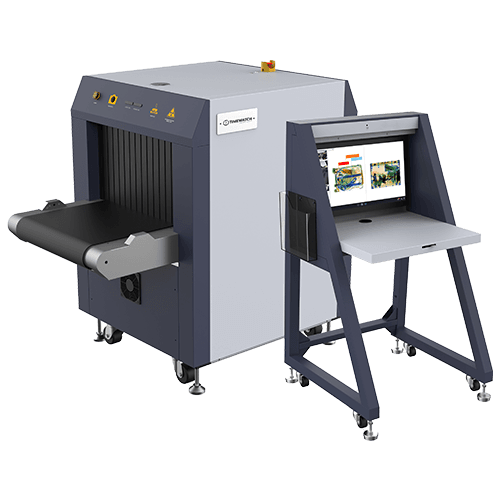

The TW5030(AI) X-ray security inspection system is a cutting-edge solution designed to elevate safety in various environments. This next-generation system seamlessly integrates intelligent detection with efficient baggage connection, making it an essential asset for modern security protocols. Its optimally sized tunnel accommodates small parcels, backpacks, envelopes, and handbags, ensuring thorough screening without compromising throughput. Ideal for deployment in office buildings, large events, courts, prisons, embassies, factories, schools, hospitals, and public places, the TW5030(AI) provides comprehensive threat detection. With advanced intelligent recognition that automatically alarms on concealed suspicious items, coupled with robust remote management and detailed event-trace capabilities, this system guarantees enhanced security and streamlined operational oversight.
ai based
Energy Saving
One key turn off
High resolution color display
Sound and alarm
Baggage counter
Compact Design
Scan Palletized Loads
| Specification | Details |
|---|---|
| Tunnel Dimensions | 500 mm (W) × 300 mm (H) |
| System Dimensions | 1483 mm (L) × 730 mm (W) × 1060 mm (H) |
| Conveyor Height | 600 mm |
| Conveyor Speed | 0.2 m/s |
| Max. Conveyor Capacity | 80 kg (Even Distributed) |
| Wire Resolution | 36/38 AWG |
| Penetration (Steel) | 6/8 mm |
| Number of Generators | 1 |
| Anode Voltage / Current | 80KV / 1.0mA (Adjustable) |
| Cooling / Working cycle | Oil-cooling / Continuous |
| External dose rate | < 0.5 µSv/h (50mm Distance to the Housing) |
| Film Safe | Guaranteed up to ISO1600 |
| Prohibited Goods Detection | 35 Major Types, over 64 categories |
| Others | Shield Alarms, etc. |
| Cameras | 2 Camera, Resolution: 1920x1080 |
| Sensor Type | 1/2.8" Progressive Scan CMOS |
| Video Compression Standard | H.265 / H.264 / MJPEG |
| Power Consumption | < 0.5 KVA |
| Power Supply | AC 110V to 230V (-15% to +10%), 50Hz/60Hz (±3Hz) |
| Noise level | < 60 dB |
| Operating Temperature / Humidity | 5 °C to 40 °C / 5 % to 95 % (non-condensing) |
