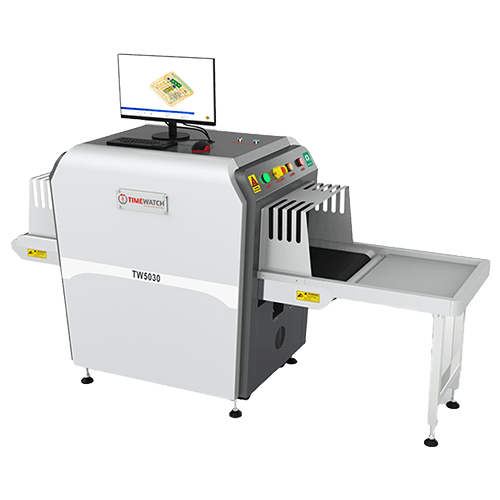

TimeWatch TW5030 – Compact X-Ray Baggage Scanner The TimeWatch TW5030 is a space-saving X-ray scanner engineered for efficient security screening of small bags, parcels, and briefcases. With a tunnel size of 500 x 300 mm, it is ideal for hotels, offices, schools, courts, and areas with limited entryway space. TW5030 delivers crisp, high-resolution images and color-coded threat indicators for reliable detection of firearms, explosives, and contraband. Fast conveyor speed and intuitive touchscreen controls optimize throughput in busy locations, while automated diagnostics and predictive maintenance keep the system running smoothly.
Energy Saving
One key turn off
High resolution color display
Sound and alarm
Baggage counter
Compact Design
Scan Palletized Loads
| Specification | Details |
|---|---|
| Tunnel Size | 500 x 300 mm (± 20mm) |
| X-ray Tube Anode Voltage | 80Kv |
| X-ray Tube Cooling | Sealed oil bath with forced air |
| Wire Resolution | 38 AWG |
| Penetration(steel) | 12 mm |
| Leakage Dose-rate | ≤ 0.9 μSv/h(μGy/h) |
| Noise Level | ≤ 65 dB |
| Conveyor Speed | 0.2 m/s |
| Maximum Belt Load | 80kg (176.37 lb) |
| Power Supply | 220-240V AC |
| Typical Power Consumption | 220 W |
| Operating Temperature | 0°C ~ +45°C (32°F to 113°F) |
| Operating Humidity | 0% ~ 95% (RH), non-condensing |
| Dimensions | 1660 x 746 x 1165 mm |
