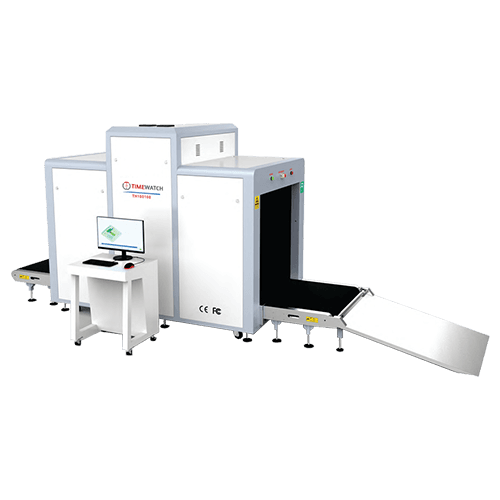

TW100100 X-ray Baggage Scanner is ideal for screening everything from large packages to oddly shaped items and palletized loads. It is strategically designed for large baggage and parcels to thwart attempts at hiding weapons, drugs, stolen goods, and other contraband. Dual-energy imaging provides automatic color coding of materials.
| Specification | Details |
|---|---|
| Tunnel Dimensions | 1001mm*1006.5mm (±20mm) |
| System Dimensions | 4835 mm (L) × 1295 mm (W) × 1916.5 mm (H) |
| Conveyor Height | 340.5 mm |
| Conveyor Speed | 0.2 m/s (Bidirectional) |
| Conveyor Capacity | 200 kg |
| Through Put | 250 bags/hour |
| Wire Resolution | SWG42 |
| Penetration (Steel) | 35mm |
| Spatial Resolution | Vertical:1.6mm, Horizontal:1.6mm |
| Resolution of Organic Matter | 1-120mm |
| Gray Scale and Mixture Resolution | 1-40mm |
| Resolution of Inorganic Objects | 0.2-10mm |
| X-Ray Dosage Each Inspection | ≤2.5μSv (uGy) |
| Radiation Level | 0.1 R/hr (at 5 cm) |
| Sensor | ≥1000 diodes, L-shaped detector |
| Duty Cycle | 100% |
| Number of Generators | 1 |
| Anode Voltage / Current | 160KV |
| Cooling / Working cycle | Oil cooling, from top to bottom |
| Film Safe | Guarantee ASA/ISO1600Film |
| Operating System | Linux |
| Monitor | 19" LCD screen |
| Resolution | 1920*1080 pixels |
| HDD | 500 GB |
| Mouse | Optical |
| Ports | 6 USB Ports |
| CD-R/RW Drive | DVD Writer |
| Network facility | 10/100/1000 Mbps |
| Power Consumption | 1.0 KW |
| Power Supply | 230V AC, 50Hz(±3Hz) |
| Noise level | < 60 dB |
| Operating Temperature / Humidity | 0°C to 40°C / Up to 90% (non-condensing) |
| Storage Temperature / Humidity | -10°C to 60°C / Up to 90% (non-condensing) |
| Weight | 940 Kg |
