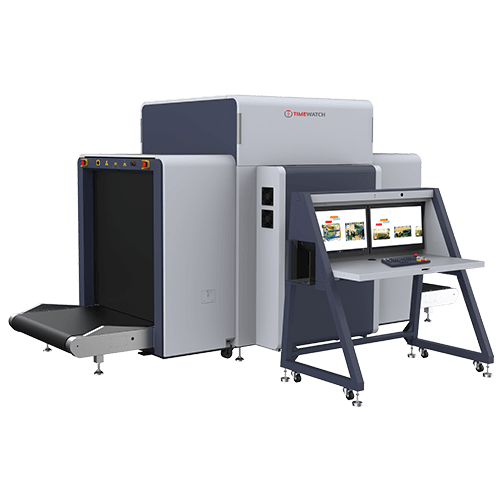

AI TimeScan Dual View
The TimeWatch AI TimeScan Dual View is a next-generation dual-view X-ray machine engineered for maximum threat detection and streamlined checkpoint throughput. Its dual-angle imaging reveals concealed weapons, explosives, and contraband that single-view scanners miss, while high-resolution detectors and advanced color/contrast filters enable rapid operator assessment. Featuring a high-speed conveyor belt, automatic self-diagnostics with maintenance alerts, and seamless network integration for centralized monitoring, AI TimeScan Dual View ensures uninterrupted, 24/7 operation. Ergonomic touchscreen controls and customizable alarm thresholds further enhance efficiency and security. Ideal for airports, seaports, railway stations, stadiums, government facilities, and corporate headquarters, AI TimeScan Dual View combines AI-enhanced imaging options with robust hardware to elevate baggage screening performance and reliability.
No key features available.
Features
ai based
Energy Saving
One key turn off
High resolution color display
Sound and alarm
Baggage counter
Compact Design
Scan Palletized Loads
Download
Product Specifications
| Specification | Details |
|---|---|
| Tunnel Size | 100 x 100 cm |
| X-ray Tube Anode Voltage | 160Kv |
| X-ray Tube Cooling | Sealed oil bath with forced air |
| Wire Resolution | 36/40 AWG |
| Penetration(steel) | 35 mm |
| Leakage Dose-rate | < 0.5 μSv/h |
| Noise Level | ≤ 65 dB |
| Conveyor Speed | 0.2 m/s |
| Maximum Belt Load | 200kg |
| Power Supply | AC 230 V, 50 Hz; 50/60 Hz (optional) |
| Typical Power Consumption | 700 W |
| Operating Temperature | -10°C ~ +60°C |
| Operating Humidity | 0% ~ 95% (RH), non-condensing |
| Camera | 5 camera, Resolution: 1920 x 1080 |
| Dimensions | 3576 mm (L) × 1536 mm (W) × 1828 mm (H) |
| Item Recognition | Recognizes items and display AI overlay (the AI Overlay box moves with packages) |
