TWND-800

TWND-800

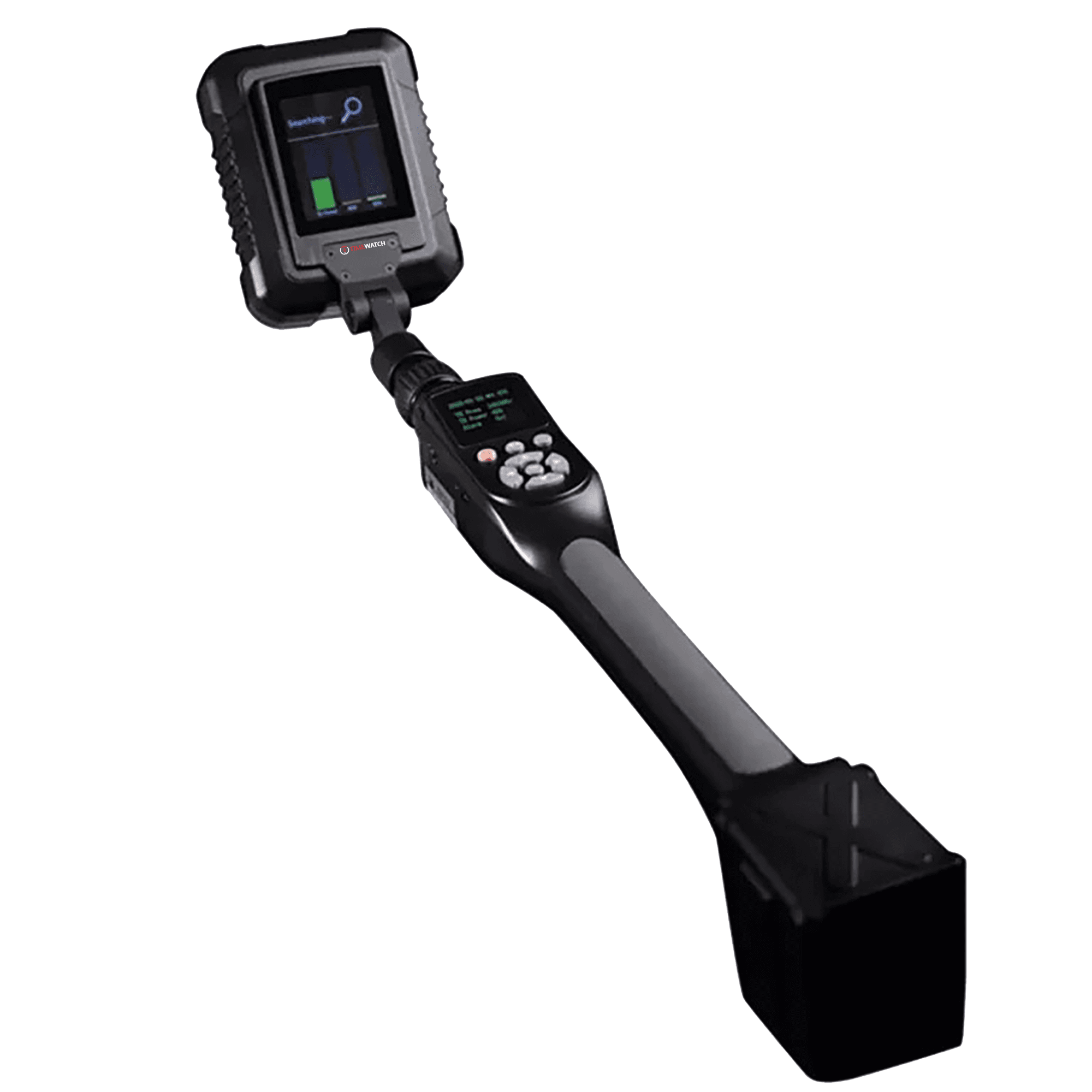

TWND-800 Non-linear junction detector, which can detect any electronic equipment hidden in walls, floors, ceilings, lamps, books, furniture or containers. No matter whether these electronic devices are transmitting signals or starting up, they can alarm through display, vibration and sound prompt, so that the etector can focus on the hidden target. • IPR: fully independent intellectual property rights not limited by technical protection, can quickly customize features and optimize algorithms, technical security under greatly protected. • High accuracy: the built-in second and third harmonic detection function can quickly and effectively identify the equipment containing semiconductor devices. • High sensitivity: it can quickly identify semiconductor products hidden in walls or furniture.

Download

Product Specifications

SpecificationDetails
Product working frequency band2.400GHz
Working voltage7.4V
Frequency range 2.404 GHz - 2.472 GHz
Receiving 2nd~3rd harmonic range4.808 GHz-4.944 GHz, 7.212 GHz-7.416 GHz
Pulse mode transmit power (maximum)0~4W (ERIP)
Receiving sensitivity <-140dBm
Battery Working Time4 Hrs.
Battery type Replaceable lithium battery
Detection distance >6m, C-class product complying with GA1236-2015 standard
Detect penetrability It can penetrate 370mm brick wall and meet the grade C products
Product dimension 750mm x 114mm x 108mm (±5mm)
Product Weight ≤1.52kg±0.05kg
Working Temperature -30°C~55°C
Working Humidity No more than 93%, no condensate
