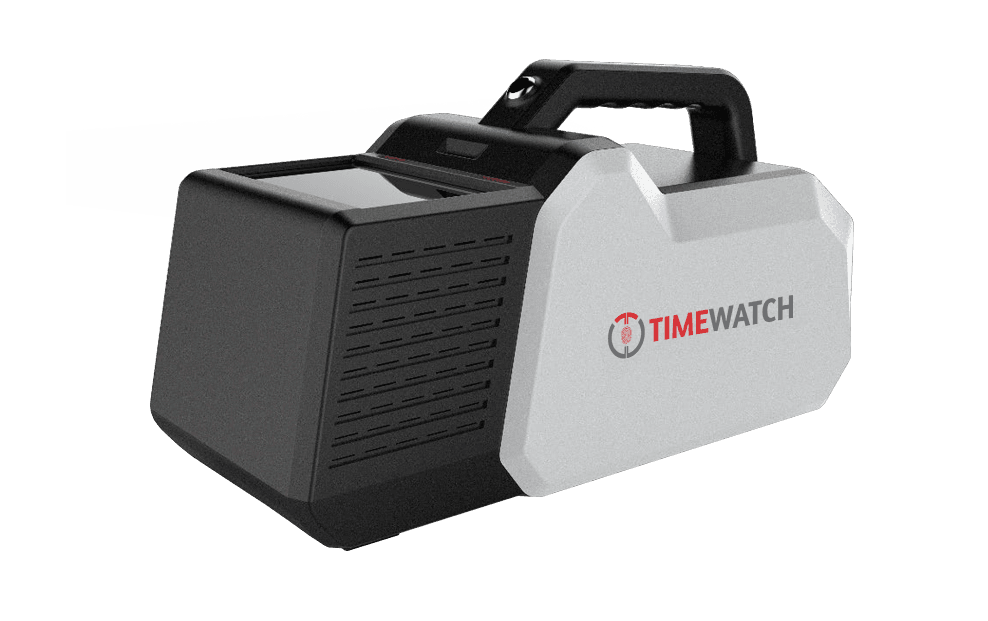

TW-NE1000 Portable Explosives and Narcotics Detector is an advanced security solution designed to identify trace amounts of explosives and illegal drugs on individuals, luggage, and surfaces. Powered by Ion Mobility Spectrometry (IMS) technology, the device ensures fast, accurate, and reliable detection within seconds. TW-NE1000 compact, lightweight, and wireless design makes it ideal for use in high-security environments such as airports, border checkpoints, public venues, and critical infrastructures. With a rich and expandable database, the system can detect a wide range of substances including TNT, RDX, PETN, methamphetamine, cocaine, and more.
| Specification | Details |
|---|---|
| Technology | Ion Mobility Spectrometry (IMS) |
| Explosives | TNT, RDX , PETN, NG, AN ,BP, RDX , Tetryl , HMX , DNTetc |
| Drugs | METH, COC , MDMA , THC, Ketamine,MOP etc |
| Sensitivity | Particle: 200pg level |
| Analysis Time | 2~10 seconds(2~10s) |
| Warm-up Time | <10 mintes (hot-start: 3 minutes) |
| Alarm | Visual and audible alarms with the substance‘s name displayed on the LCD screen |
| Monitor | 5.0 inch color TFT LCD |
| Memory | Large memory up to 500GB |
| Total weight | < 2.5kg |
| Interface | LAN×1 ，Bluetooth，Wi-Fi，USB×2 (with support for keyboard,mouse,large storage etc.) VGA(support screen extending) |
| Power | 24V/10A/Dc（Adapter with 110~220V AC） |
| Battery | 12 hours or above |
| Operating temperature | -20°C to +55°C |
| Operating humidity | 95% |
| Dimensions | 322x148x178mm (LxWxH) |
