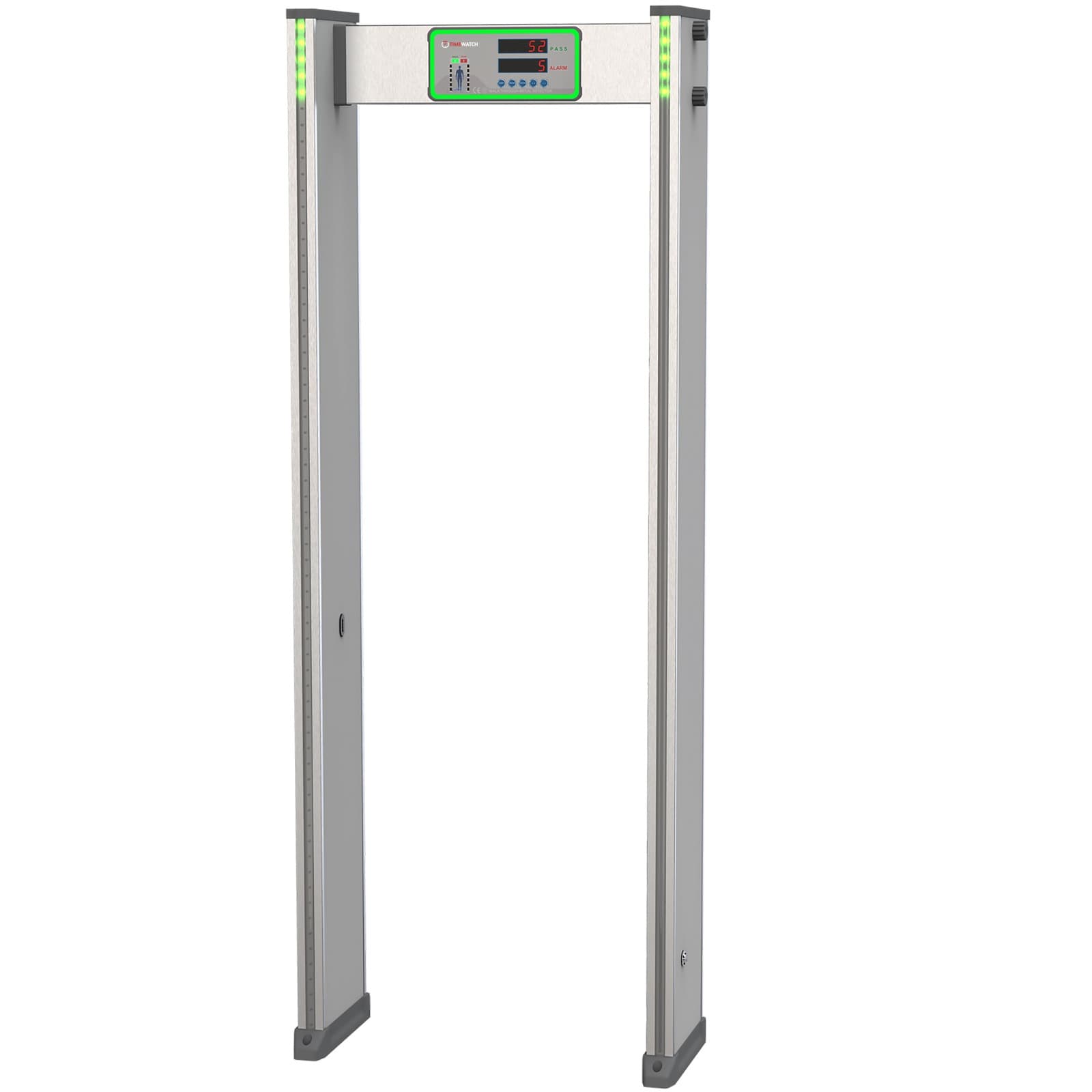

TWD-2212 (12 Zone )

TWD-2212 (12 Zone )

Introducing the TWD-2212 Door Frame Metal Detector, engineered to redefine security screening with unparalleled reliability and efficiency. Leveraging advanced electromagnetic induction technology, this cutting-edge system precisely identifies magnetic metals, instantly triggering distinct audio and visual alarms. Its robust construction features an upgraded aluminum alloy structure, an integrated circuit board design, and a high-performance copper wire coil system, ensuring enhanced stability, exceptional durability, and consistent long-term performance. From concealed threats like guns and knives to smaller items such as phones and keys, the TWD-2212 offers ultra-high sensitivity, capable of detecting objects as tiny as a coin. Moreover, its human-safe, zero-radiation design makes it suitable for all users, including pregnant women and those with pacemakers, offering peace of mind alongside superior security.

Download

Product Specifications

SpecificationDetails
Detection Zones12 Zone
Sensitivity2000 levels
CalibrationAutomatic
Control PanelDigital LED Display
Access ControlButton panel
Optics ControlInfrared sensor (1 pair)
Infrared beam modeBidirectional
Alarm IndicatorLED lamp light and sound
Traffic IndicatorWalk/Stop
Tamper-proof settingDigital Password
Infrared passing speed30 people/min
Power ModeAC-DC Adapter
Adapter powerInput: AC 110V-220V,50/60HZ ; Output: DC 12V/5A
Working voltageDC 12V/3A
Transmission Power12W
Working Frequency7KHz-9KHz
Frequency bands5
Operating Temperatures-20°C~45°C
Working humidity0-95%, no condensation
Protection classIP53
Door panelMedium Density Fiberboard
Crossbeam frameAluminum alloy, one level
Battery BackupOptional
