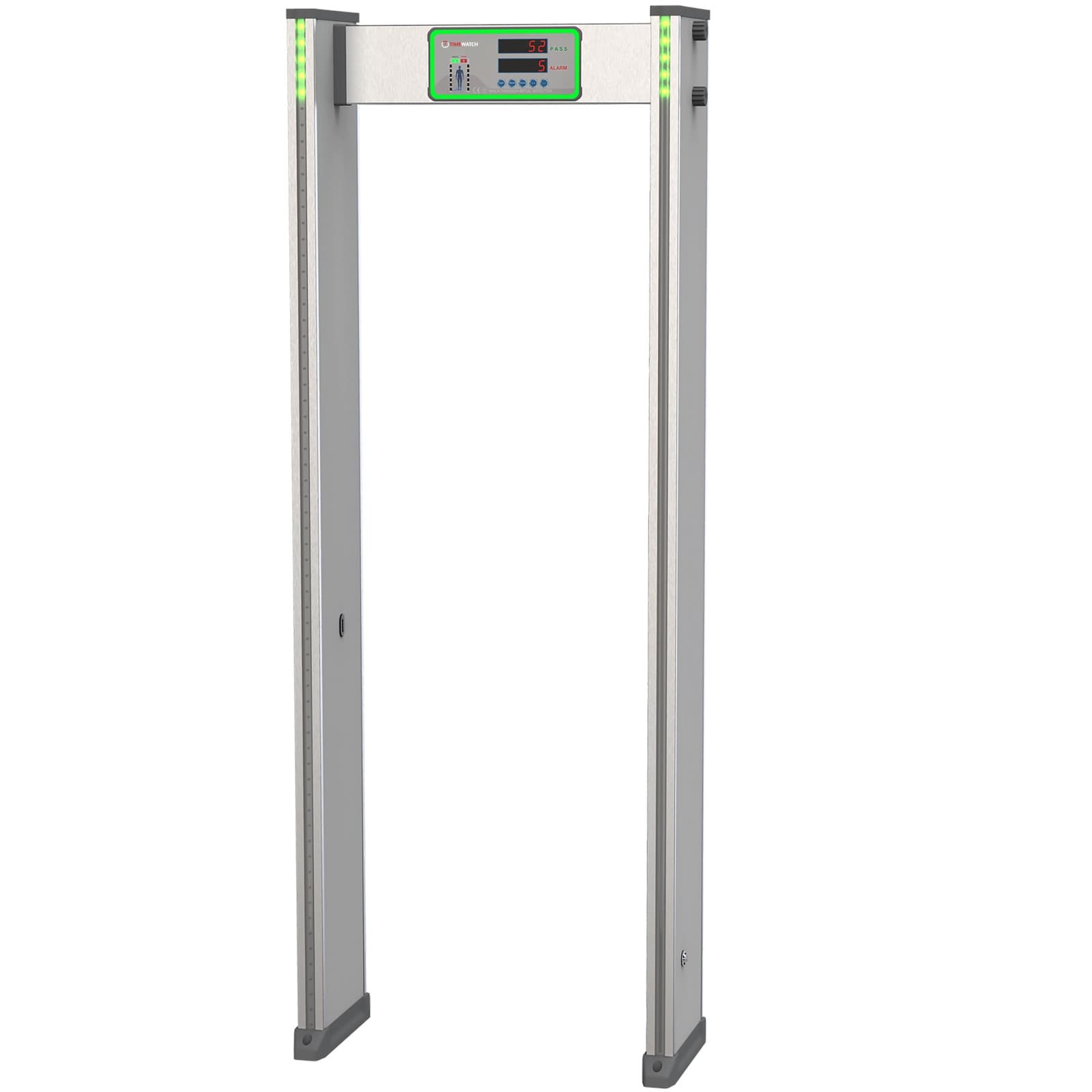

The TWD-2101 Door Frame Metal Detector offers unparalleled security screening with advanced electromagnetic induction technology, precisely detecting magnetic metals and instantly triggering audio and visual alarms. Built for durability and stability, it features an upgraded aluminum alloy structure, integrated circuit board, and a high-performance copper wire coil system, ensuring long-term reliability. This detector accurately identifies a wide range of concealed threats, from weapons to electronic devices, with ultra-high sensitivity capable of detecting objects as small as a coin. Its intelligent alarm system, equipped with a high-quality infrared sensor, guarantees instant and accurate alerts while minimizing false positives. Importantly, the TWD-2101 is 100% human-safe, posing zero radiation risk to pregnant women or pacemaker users, making it a dependable and user-friendly security solution.
| Specification | Details |
|---|---|
| Detection Zones | 6 Zone |
| Sensitivity | 2000 levels |
| Calibration | Automatic |
| Control Panel | Digital LED Display |
| Access Control | Button panel |
| Optics Control | Infrared sensor (1 pair) |
| Infrared beam mode | Bidirectional |
| Alarm Indicator | LED lamp light and sound |
| Traffic Indicator | Walk/Stop |
| Tamper-proof setting | Digital Password |
| Infrared passing speed | 30 people/min |
| Power Mode | AC-DC Adapter |
| Adapter power | Input: AC 110V-220V,50/60HZ ; Output: DC 12V/5A |
| Working voltage | DC 12V/3A |
| Transmission Power | 12W |
| Working Frequency | 7KHz-9KHz |
| Frequency bands | 5 |
| Operating Temperatures | -20°C~45°C |
| Working humidity | 0-95%, no condensation |
| Protection class | IP53 |
| Door panel | Medium Density Fiberboard |
| Crossbeam frame | Aluminum alloy, one level |
| Battery Backup | Optional |
