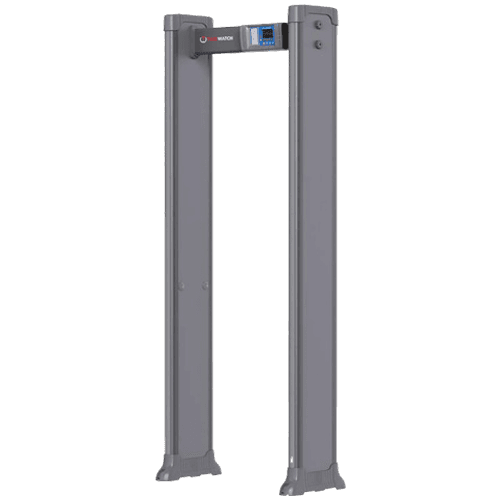

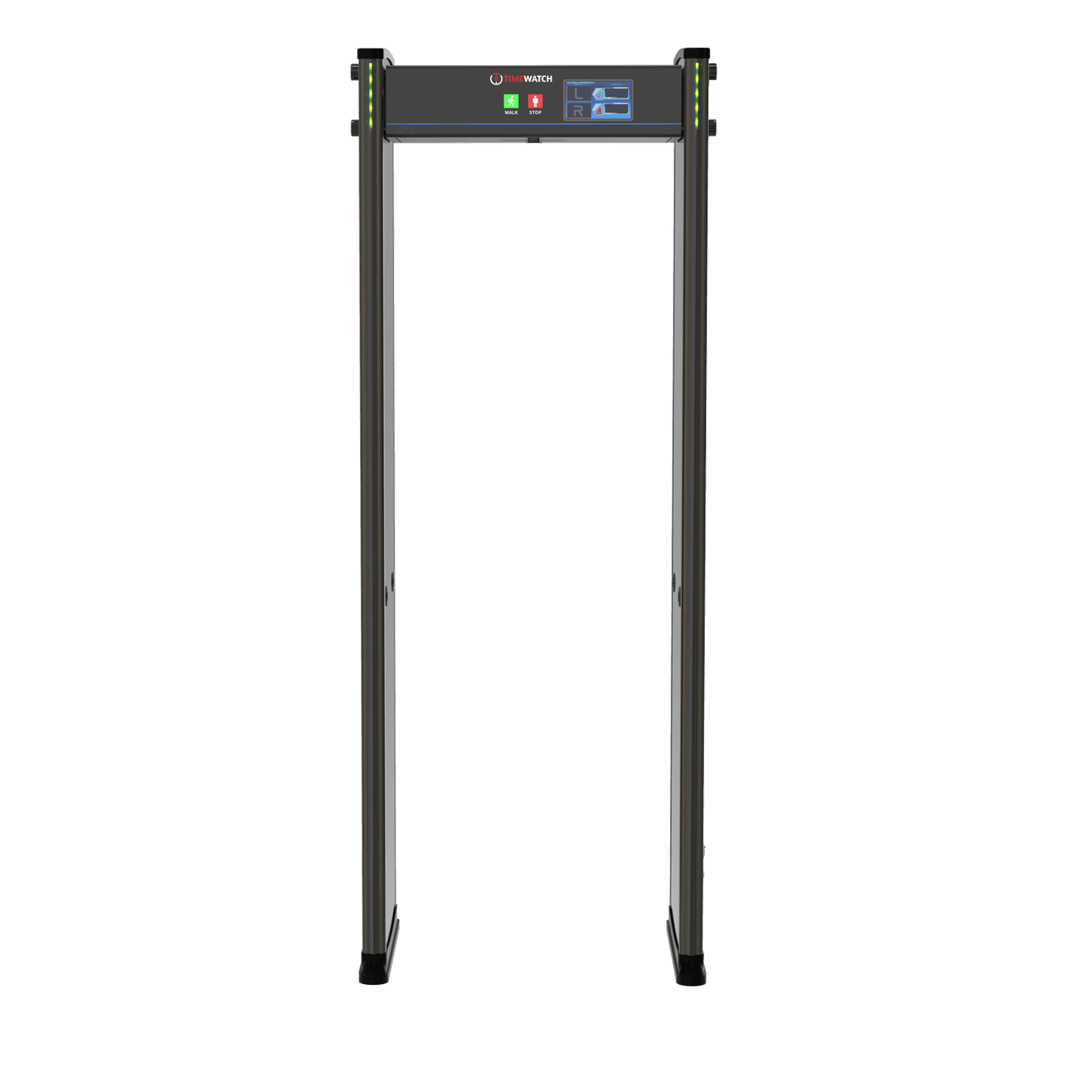

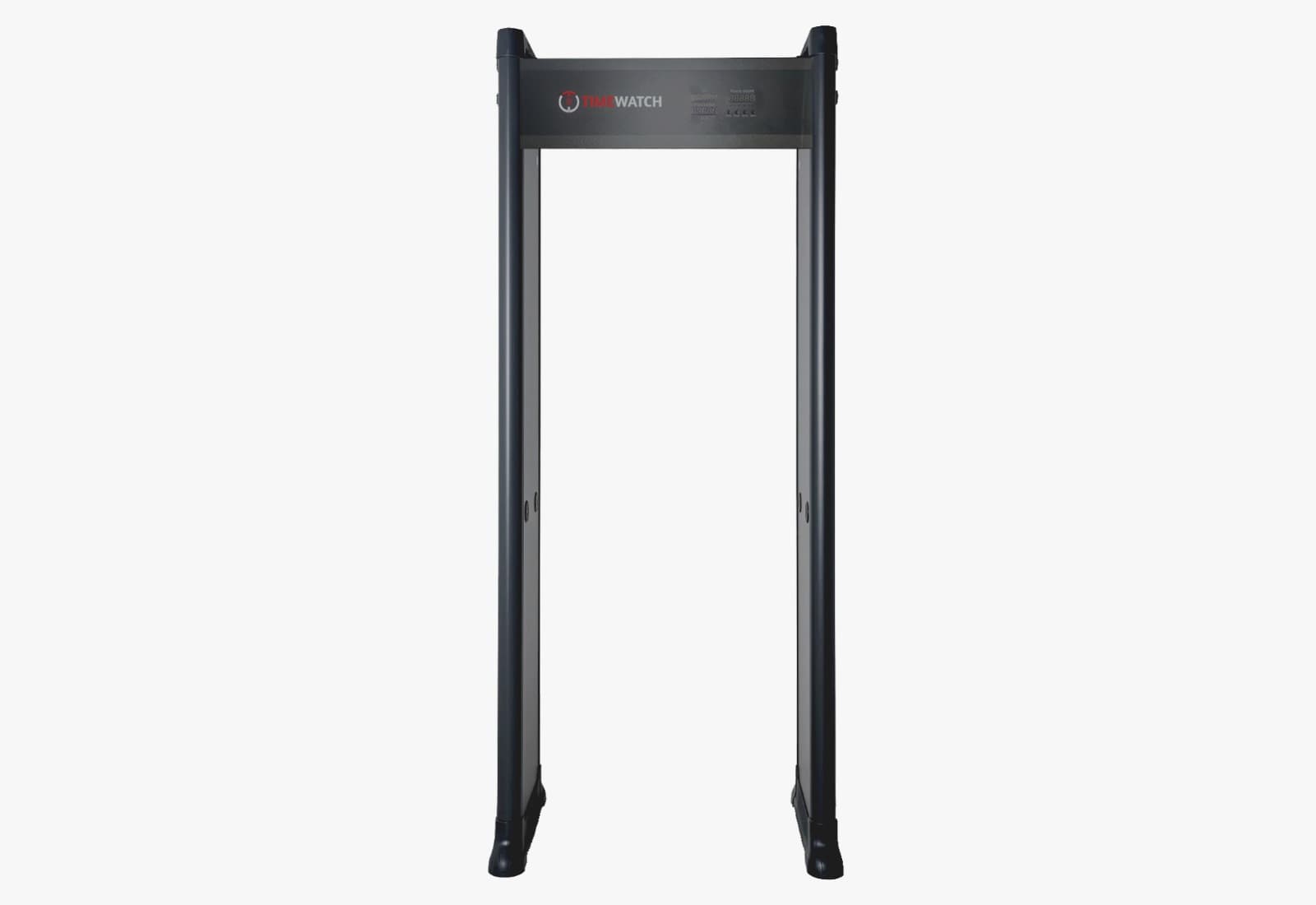

The TWD-2618 is a high-performance 18-zone Door Frame Metal Detector engineered for superior security screening in high-traffic environments. Utilizing cutting-edge digital signal processing and dual infrared detection technology, it offers precise target localization with adjustable sensitivity across all 18 independent zones, minimizing false alarms. Its intelligent alarm statistics, bright LED indicators, and audible alerts ensure rapid, effective threat detection. Designed with user-friendly operation and robust construction, the TWD-2618 provides safe electromagnetic performance that won't affect pacemakers or magnetic storage devices. With a quick 20-minute installation, this detector is the ideal security solution for critical infrastructure like airports, government facilities, and stadiums.
| Specification | Details |
|---|---|
| Outer Frame | 2250mm(H) x838mm(W)x495mm(D) |
| Inner Frame | 2000mm(H)x724mm(W)x495mm(D) |
| Electrical Current | AC100V~240V 50/60Hz |
| Power | 10W |
| Signal Frequency | 7000-8999Hz(adjustable) |
| Work Environment | -20°C to +45°C |
| Sensitivity Adjustable | Level 0-299 |
| Alarm | Sound and light |
| Max Distance | 0.3m at low sensitivity;0.5m at high sensitivity |
| Sensibility | With the highest sensibility, it can detect the metal article as small as the clip. With the sensibility range of 0-100, it can be easily adjusted, pre-set the weight, volume, size and location in respect of the metal Articles and eliminate the false alarming for the coin, key, jewelry, leather belt button, etc. |
| Infrared Counting | The intelligent counter can calculate the number of Passenger flows and the times of alarm. |
| Detecting areas | Allocation of eighteen mutual over-lapping detecting areas, Simultaneous alarming from multi-areas and accurately ascertaining the location Of the metal particles according to the layout of the metal particles |
| Operating temperature | 5°C ~ 40°C |
| Operating Humidity | 0%-90%(non-condensing) |
| Storage temperature | -20°C ~ 55°C |
| Storage Humidity | 0%-98%(non-condensing) |
| Operation Power | 220VAC(±10%) 50±3Hz (Optional 100VAC,110VAC,120VAC,200VAC) |
| Battery Backup | Optional |
