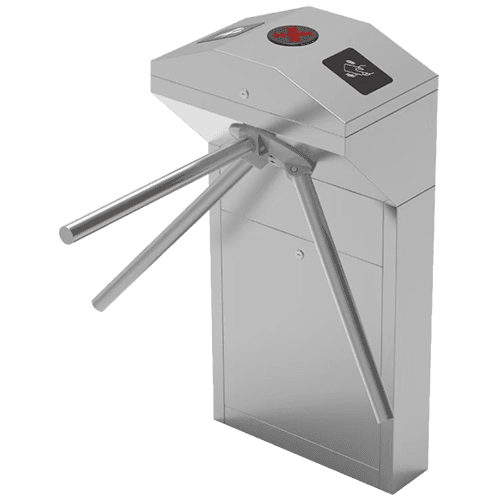

The TimeWatch TWLD-TS2700 is an enterprise-grade semi-automatic tripod turnstile gate constructed from AISI 304 brushed stainless steel, engineered for high-traffic pedestrian flow management in offices, stadiums, subways, and campuses. Delivering bidirectional passage for 25–30 people per minute with an MCBF rating of 5 million cycles, the TS2700 features integrated anti-tailgating infrared sensors, IP54 ingress protection, and automatic arm-drop functionality upon power failure or fire alarm trigger.
Low Maintenance
No attrition & High Temperature Resistant
Failure proof electromagnetic solenoid valves
Low noise high intelligence
SS304
| Specification | Details |
|---|---|
| Housing & Arm Material | AISI 304 Original Brushed Stainless Steel + Acrylic |
| Physical Dimensions | 510 mm (L) × 310 mm (W) × 1010 mm (H) |
| Passage Width / Channel | 500 mm channel width |
| Throughput Traffic Speed | 25-30 persons/min (Normally Open) / 15-20 persons/min (Normally Closed) |
| Mechanical Life (MCBF) | ≥ 5,000,000 operation cycles |
| Control Signal Input | Dry contact pulse signal (NC/NO) / Wiegand 26/34 |
| Authentication Support | Facial Recognition, Fingerprint, Smart RFID Card, Barcode/QR |
| Power Supply & Rating | 30-60 W; AC 220V ± 10% |
| Emergency Safety Mode | Automatic tripod arm drop on power outage or fire alarm relay |
| Ingress & Climate Rating | IP54 rating; operating temp -20°C to + 75°C |
