TWLD-SG2700/2702

TWLD-SG2700/2702

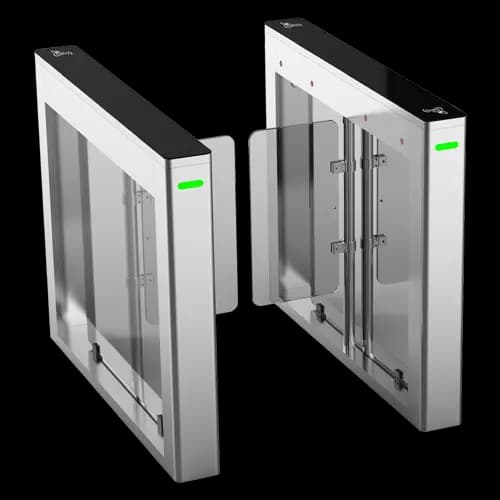

TWLD-SG2700/2702 Swing Barrier Gate is an advanced optical turnstile designed with bi-directional swing barriers to efficiently manage high pedestrian traffic while effectively detecting tailgating. Equipped with precision infrared sensors and intelligent motor control, the system ensures accurate movement monitoring and smooth, controlled passage. The barrier opens only after valid access authorization and quickly closes behind the authorized user to maintain security. An automatic alarm is triggered in case of unauthorized entry or any attempt to force the barrier. Stylish, reliable, and highly secure, the TWLD-SG2700/2702 Swing Barrier Gate is an ideal solution for modern, high-end entrance control environments.

Download

Product Specifications

SpecificationDetails
IntegrationFace, Finger, Card, PIN & QR
Housing MaterialSS304, Tempered Glass, Acrylic
Passage WidthStandard 600 mm (≤950 mm can be customized)
MechanismDC24V Brushless Electric Motor
Dimension1200(L) × 150(W) × 980(H) mm
Protection LevelIP45
Traffic DirectionBi-Directional
Flow Rate30-40 People/min
Life Cycle>6 Million Times
Power Consumption40-70 W
Power Supply220V±10% 50Hz
Operating Temperature-15°C to +70°C
Operating Humidity0%~95% No Condensation
