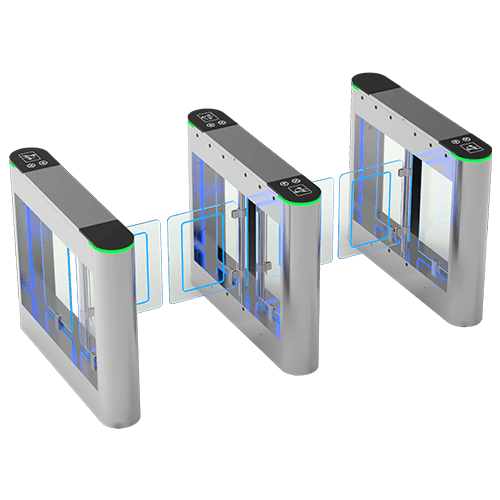

The TimeWatch TWLD-SG2600 (single lane) and TWLD-SG2602 (double lane) swing barrier gates offer premium entrance control tailored for modern facilities. Constructed from SUS304 stainless steel with acrylic or tempered glass paddles, these gates deliver smooth, silent operation via precision brushless DC motors. Their sleek design enhances aesthetics while providing reliable security. Both models feature selectable single- or bi-directional modes, adjustable open/close speeds (0.6–1.0 seconds), and a 600 mm passage width per lane. Integrated infrared anti-pinch and anti-tailgating sensors ensure user safety and prevent unauthorized entry. The TWLD-SG2602 enables simultaneous two-lane operation for high-traffic areas. With fire-alarm interface for emergency open, battery backup for power outages, and TCP/IP plus dry-contact I/O for seamless connection to RFID readers, biometric terminals, and building management systems, these swing barriers are ideal for corporate lobbies, healthcare facilities, airport lounges, and retail centers seeking efficient, secure pedestrian flow control.
8 million movement life
6 to 8 Pairs Infra Red
Illegal intrusion infrared alarm
DC Brushless motor
Auto Self Inspection&Alarm Prompt
Negligible Maintenance
SS304
| Specification | Details |
|---|---|
| Dimension | 1200(L) x 200(W) x 980(H)mm |
| Passage Width | Standard 600mm (≤900mm Can be customized) |
| Motor | 24V brushless DC motor, low noise |
| Material | SS 304 Stainless Steel + Acrylic |
| Traffic Direction | One-way traffic / Two-way traffic |
| Traffic Speed | 35-40 people / min |
| Power | 40-60 W |
| Integration | Face, Fingerprint, Card & QR |
| Life | ≥ 8 Million Times |
| Operating Temperature | -20°C ~ +70°C |
