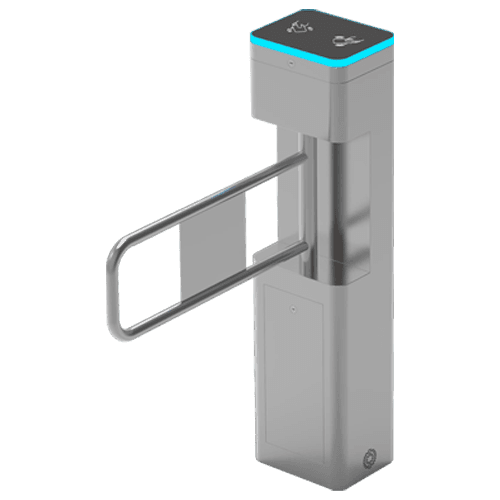

The TimeWatch TWLD-SBG1000 is a premium P-Type swing barrier gate engineered for efficient entrance control and seamless integration with time attendance and access control systems. Featuring a robust stainless steel chassis and durable tempered glass paddles, the TWLD-SBG1000 delivers smooth, silent operation through a precision brushless DC motor. Its sleek P-Gate design provides wide passage lanes ideal for wheelchair and trolley access, while integrated infrared sensors ensure reliable anti-tailgating and safety detection. With selectable single- or bi-directional modes, customizable passing timeout, and fire-alarm interface, this swing barrier gate balances security and convenience. TCP/IP and dry-contact I/O interfaces allow easy connection to RFID readers, biometric terminals, and building management platforms. Ideal for corporate lobbies, healthcare facilities, and retail environments, TWLD-SBG1000 offers a modern, reliable solution for pedestrian flow management and access control.
≥6 mllion movement life
Illegal intrusion infrared alarm
24V DC brushless motor, low noise
Auto Self Inspection & Alarm Prompt
Low Maintenance
SS304
| Specification | Details |
|---|---|
| Integration | Face, Finger, Card, PIN & QR |
| Housing Material | SS304, Acrylic |
| Passage Width | Standard 562.5 mm (900 mm can be customized) |
| Mechanism | 24V DC Brushless Motor, Low Noise |
| Dimension | 250(L) × 200(W) × 980(H) mm |
| Traffic Direction | Bi-Directional |
| Life Cycle | 6 Million Times |
| Infrared Quantity | Single-Shot Infrared |
| Power Consumption | 40–70 W |
| Opening Signal | Dry Contact Signal |
| Operating Temperature | -20°C to +70°C |
