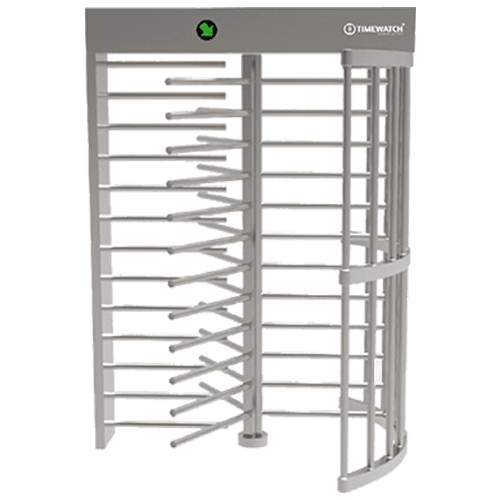

The TimeWatch FHT2400 is a premium single-lane full-height turnstile engineered for secure, high-throughput access control in demanding environments. Built with SUS304 stainless steel, it features a powerful 24 V brushless DC motor for silent, semi-automatic operation and an IP44-rated housing for weather resistance. Its modular design (1200 × 1000 × 2200 mm) supports versatile indoor or covered outdoor installation. Key features include LED direction indicators, adjustable barrier arms, infrared anti-tailgating sensors, and a fail-safe emergency unlock (power loss or fire alarm) to ensure safe egress. With a throughput of up to 30 passages per minute and an MCBF rating of 2 million cycles, FHT2400 integrates seamlessly with RFID readers, biometric terminals, and QR code scanners via dry-contact I/O and TCP/IP interfaces. Ideal for corporate offices, transit stations, educational campuses, and secure facilities seeking robust, scalable pedestrian management solutions.
Corrosion Protected SS Frame
LED Indicator
IP 44 Protection
Wired Terminal
Heavy duty
Delay time
| Specification | Details |
|---|---|
| Number of Rods | 4 |
| Integration | Face, Fingerprint, Card, Password & QR |
| Passage Width | <550 mm |
| Operational Voltage | 24V DC |
| Max Power Consumption | 30 W |
| Frequency | 50-60 Hz |
| Protection Level | IP44 |
| Electromagnetic drive | DC |
| Material | SS304 |
