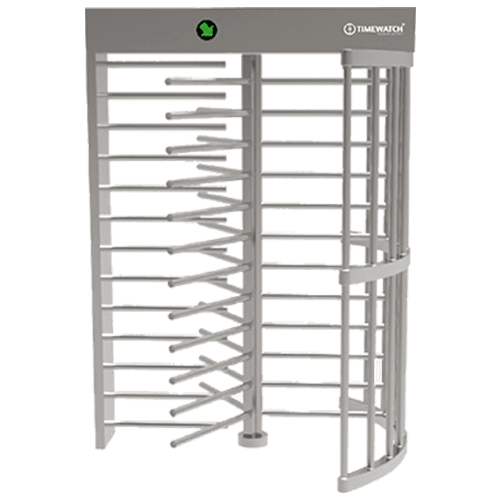

FHT2300 is a Single Lane 3 Rod Full Height Turnstile driven by a DC Brushless Motor, allowing users to pass with very low passing resistance. It supports multiple operating modes, including bi-directional, single-directional, always free, and always locked. It comes with an LED direction indicator and an automatic opening/closing function when powered off. The turnstile features an anti-hit function if the rotating arm touches a user during passage, it immediately stops and automatically resumes operation, ensuring safe and reliable access control.
Corrosion Protected SS Frame
LED Indicator
IP 44 Protection
Wired Terminal
Heavy duty
Delay time
| Specification | Details |
|---|---|
| Integration | Face, Fingerprint, Card, Password & QR |
| Protection Level | IP44 |
| Humidity | 95% |
| Power Supply | 220V~240V AC |
| Operational Voltage | 24V DC |
| Passage Width | 550mm |
| Arms | Standard: 3 Spokes @ 120° × 10 Rotating Arms Optional: 4 Spokes @ 90° × 10 Rotating Arms |
| Frequency | 50-60Hz |
| Electromagnetic Drive | DC |
| Operating Temper Range | -25~+70 °C |
| Power Consumption | 30W |
| Dimensions | 1400 × 1200 × 2310 mm |
