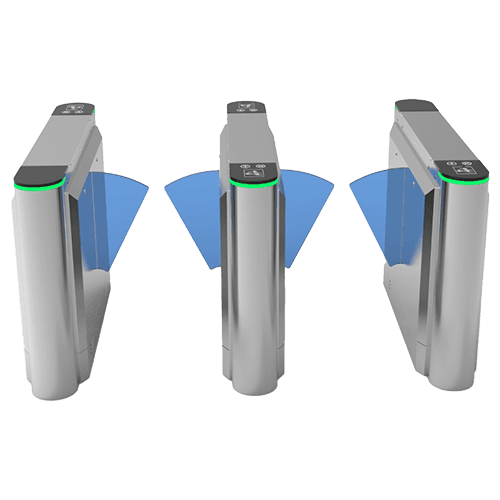

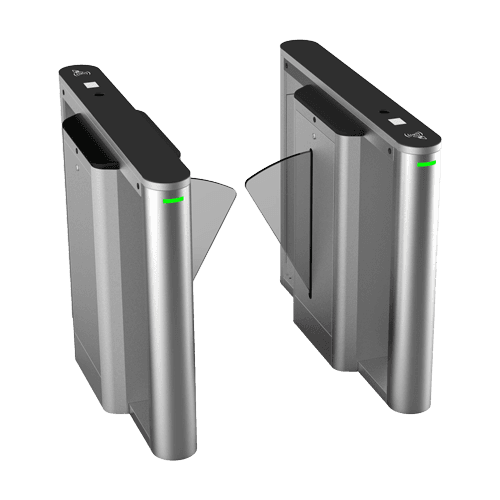

The TimeWatch TW-FB2000/TW-FB2200 Flap Barrier series offers a sophisticated entrance control solution designed for high-traffic environments. Constructed from 304-grade stainless steel with durable acrylic flaps, these fully automatic barriers are driven by a 24 V brushless DC motor that delivers silent, reliable operation. Key features include LED direction indicators, selectable operating modes (single or bi-directional), and infrared anti-tailgating sensors to prevent unauthorized entry. With a rapid unlock/close cycle (0.6 s), throughput of up to 40 persons per minute, and ambient operating range from –25 °C to 70 °C, TW-FB2000/2200 ensures efficient, secure pedestrian flow. Integrated fire-alarm interface releases the barrier during emergencies, while TCP/IP and dry-contact I/O enable seamless integration with access control and building management systems. Ideal for offices, transit stations, campuses, and commercial facilities seeking premium biometric and card-based access control.
8 million movement life
6 to 8 Pairs Infra Red
Illegal intrusion infrared alarm
DC Brushless motor
Auto Self Inspection&Alarm Prompt
Negligible Maintenance
SS304
| Specification | Details |
|---|---|
| Dimension | 1200(L) x 280(W) x 980(H)mm |
| Passage Width | 600 mm |
| Motor | 24V brushless DC motor, low noise |
| Material | SS 304 Stainless Steel + Acrylic |
| Traffic Direction | One-way traffic / Two-way traffic |
| Traffic Speed | 25-30 people / min |
| Power | 40-60 W |
| Integration | Face, Fingerprint, Card & QR |
| Life | ≥ 8 Million Times |
| Operating Temperature | -15°C ~ +70°C |
