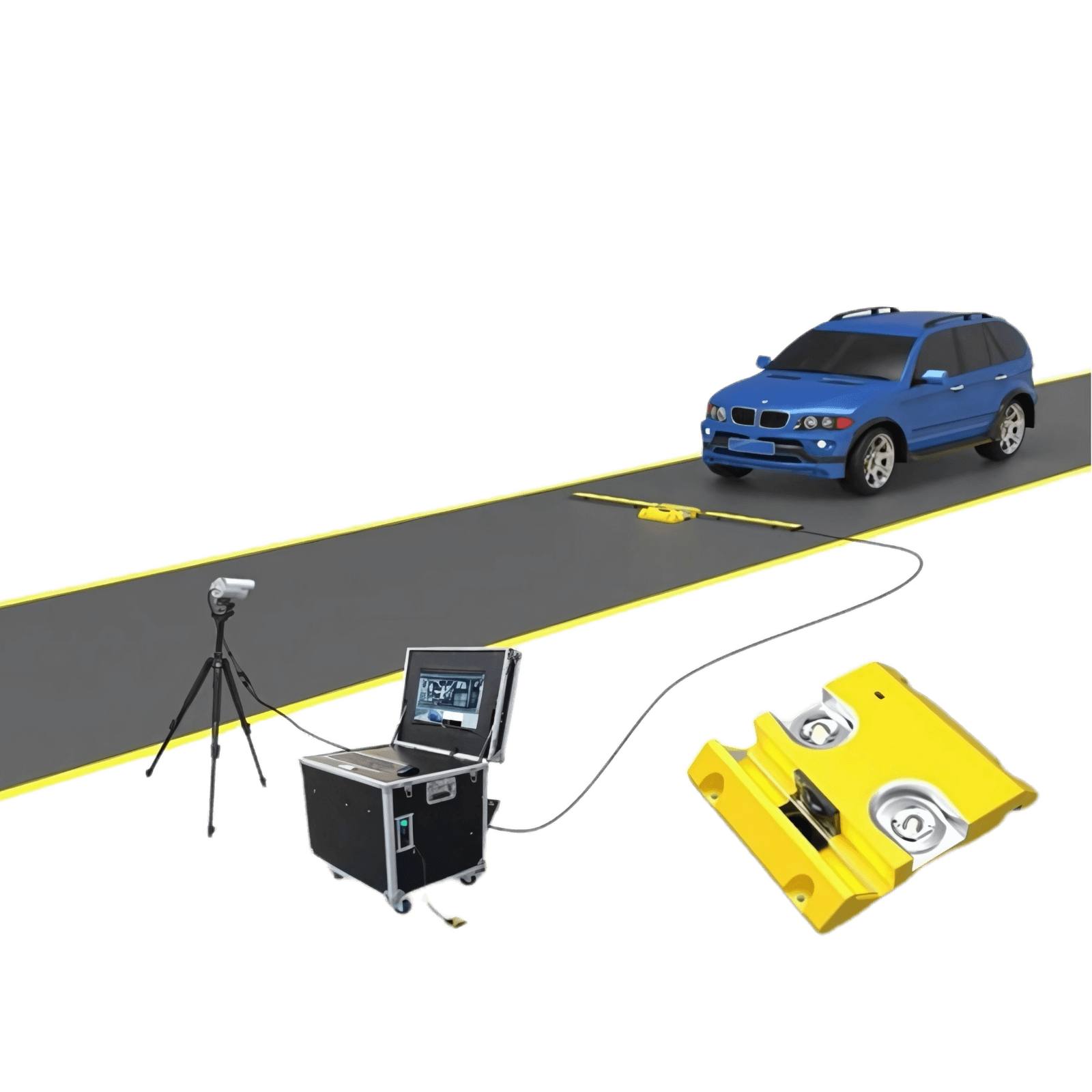

UVSS, which stands for Under Vehicle Surveillance System, is an advanced security technology designed to inspect the undercarriage of vehicles for potential threats, contraband, or other security risks. Typically, UVSS systems consist of a series of high-resolution cameras and specialized lighting modules strategically installed at fixed positions on the ground, usually at entry or exit points of secured facilities such as airports, military bases, government buildings, and high-security installations. By providing a clear view of the underside of vehicles, UVSS enhances overall security and enables quick detection of potential hazards before vehicles are allowed to enter sensitive areas.
| Specification | Details |
|---|---|
| Maximum Scanning Rate | 18kHz |
| View Angle | 170° |
| Lightning | 160W |
| Vehicle Speed | 1-60 km/hr (<30 km/hr) |
| Scanner Data Line | 10m (Customizable) |
| Lightning Component | 2 single sealed LED surface light sources, life span 50,000 hours |
| Load Bearing Weight | 30T |
| Waterproof Grade | IP68 |
| Weight of Device | 28kg |
| Size of Device | 1200 x 350 x 210 mm |
| Image Resolution | 12000 x 6144 |
| Operating Temperature | -25°C ~ +60°C |
| Storage Temperature | -40°C ~ +75°C |
| Scannig Resolution | >= 2048 pixels CCD / >= 4096 pixels CCD |
