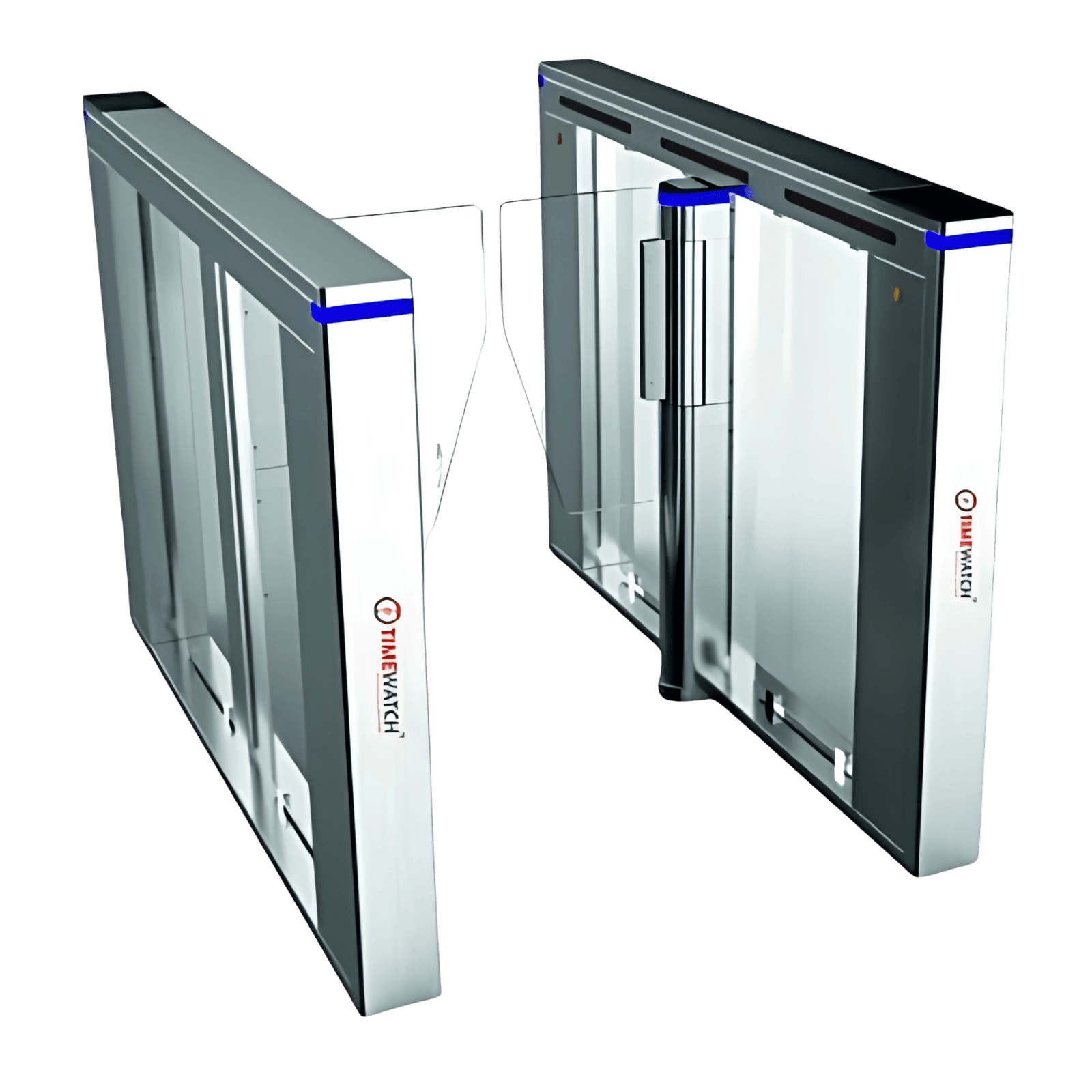

The TimeWatch TWLD-SG-2009 is a robust, high-security swing barrier gate engineered for precision access control and seamless integration with attendance and security systems. Sporting a corrosion-resistant stainless steel chassis and durable acrylic paddles, TWLD-SG-2009 operates on a brushless DC motor for quiet, maintenance-free performance. Its compact 300 mm standard passage and optional 600 mm wide lane accommodate diverse traffic needs, while selectable single- or bi-directional operation and adjustable open/close timing (0.6–1.0 s) optimize throughput. Integrated infrared anti-pinch and anti-tailgating sensors ensure user safety and block unauthorized entry. The gate offers an emergency mode—automatically opening on fire-alarm or power failure—and supports TCP/IP, RS-485, and dry-contact I/O for effortless connection to RFID readers, biometric terminals, and building automation platforms. Ideal for corporate offices, government facilities, and healthcare environments, TWLD-SG-2009 provides reliable, secure pedestrian flow management and scalable entrance control.
15 Mllion movement life
6 Pairs Infra Red
Illegal intrusion infrared alarm
24 Servo motor Low noise
Auto Self Inspection&Alarm Prompt
Negligible Maintenance
SS304
| Specification | Details |
|---|---|
| Dimension | 1520(L) x 1200(W) x 1020(H) mm |
| Passage Width | 600-900 mm |
| Material | SS 304 Stainless Steel + Acrylic |
| Traffic Direction | One-way traffic/two-way traffic |
| Traffic Speed | 35-40 people / min |
| Power | 60-90 W |
| Integration | Face, Fingerprint, Card & QR |
| Life | >= 15 Million times |
| Operating Temperature | -20°C ~ +70°C |
