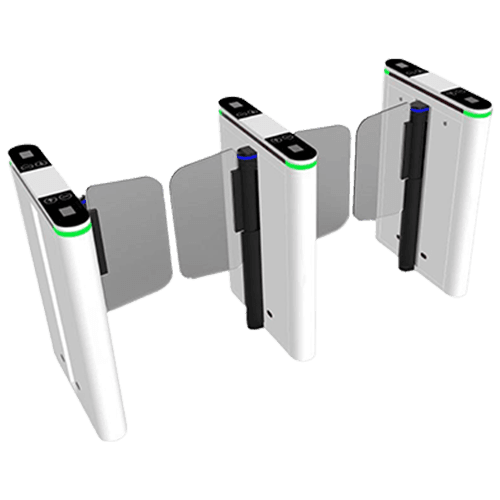

The TimeWatch TWLD-SG-20 is a high-performance swing gate barrier designed for secure, efficient pedestrian access control. Crafted with a robust stainless steel housing and tempered glass wings, TWLD-SG-20 operates smoothly via precision brushless DC motors, ensuring silent, reliable gate action. Its compact design enables installation in narrow passages, while selectable single- or bi-directional operation and adjustable open/close speeds (0.8–1.2 seconds) accommodate varying traffic flows. Integrated infrared anti-pinch sensors provide user safety, and anti-tailgating functionality prevents unauthorized follow-through. The gate features a fire-alarm interface for emergency open, TCP/IP and dry-contact I/O for seamless integration with RFID readers, biometric devices, and building management systems. Ideal for corporate entrances, hotels, and retail environments, TWLD-SG-20 delivers aesthetic appeal, robust security, and dependable operation for modern access control and time attendance applications.
Fast and adjustable opening time 0.3 1 sec
4 Pairs Infra Red
Illegal intrusion infrared alarm
24 Servo motor Low noise
In built anti collision and anti pinch function
Negligible Maintenance
| Specification | Details |
|---|---|
| Dimension | 700 x 200 x 1020 mm |
| Passage Width | 600-900 mm |
| Material | SS 304 Stainless Steel + Acrylic |
| Traffic Direction | One-way traffic / Two-way traffic |
| Traffic Speed | 35-40 people / min |
| Power | 40-60 W |
| Integration | Face, Fingerprint & Card |
| Life | ≥ 8 Million times |
| Operating Temperature | -20°C ~ +70°C |
