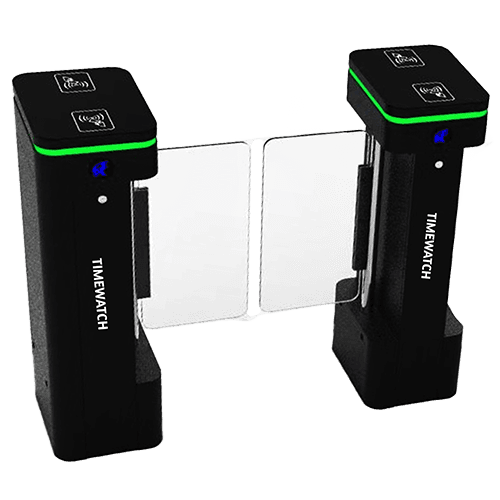

The TimeWatch TW-SG-2712 is an advanced dual-lane swing gate barrier engineered for seamless entrance control and secure pedestrian management. Housed in SUS304 stainless steel with tempered glass wings, it features precision brushless DC motors for quiet, reliable operation. Each 600 mm lane accommodates wheelchairs and trolleys, while selectable single- or bi-directional modes and adjustable open/close speeds (0.6–1.2 s) optimize traffic flow. Integrated infrared anti-pinch and anti-tailgating sensors ensure user safety and block unauthorized follow-ins. TW-SG-2712 supports fire-alarm emergency open, optional battery backup for power outages, and TCP/IP plus dry-contact I/O for effortless integration with RFID readers, biometric scanners, and building management platforms. Ideal for corporate lobbies, airports, hospitals, and retail centers, TW-SG-2712 delivers a modern, efficient solution for high-traffic access control and time attendance applications.
8 million movement life
4 Pairs Infra Red
Illegal intrusion infrared alarm
24 Servo motor Low noise
Auto Self Inspection&Alarm Prompt
Negligible Maintenance
| Specification | Details |
|---|---|
| Dimension | 380 x 300 x 1024 mm |
| Passage Width | Standard 600mm (≤ 1200mm can be customized) |
| Material | Carbon steel plate + paint, toughend glass, crylic |
| Traffic Direction | One-way Traffic / Two-way Traffic |
| Operating Speed | 0.5 ~ 0.8 sec |
| Power | 40 - 70W |
| Integration | Face, Fingerprint, Card, Password, QR & Remote |
| Life | ≥8 Million times |
| Operating Temperature | -15°C ~ +70°C |
